LP5553

PinoutSpecificationsInput Min Voltage2.7 VoltInput Max Voltage4.8 VoltOutput RangeBucks: 0.6 to 1.235V; LDO1: 0.7 to 2.2V; LDO2: 1.5 to 3.3V; LDO3 and LDO4: 0.6 to 1.25V; LDO5: 1.2 to 3.3VChannels7 ChannelsDropout Voltage0.26 VoltPowerWise TechnologyAdaptive Voltage ScalingOutput1 VoutMin0.6 VoltO...

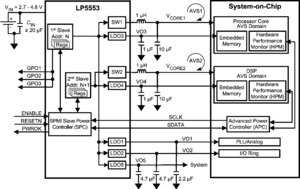

product image

LP5553 Picture
See larger image
SeekIC No. : 004398965 Detail

LP5553: PinoutSpecificationsInput Min Voltage2.7 VoltInput Max Voltage4.8 VoltOutput RangeBucks: 0.6 to 1.235V; LDO1: 0.7 to 2.2V; LDO2: 1.5 to 3.3V; LDO3 and LDO4: 0.6 to 1.25V; LDO5: 1.2 to 3.3VChannels7 ...

LP5553 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP5553
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Input Min Voltage2.7 Volt
Input Max Voltage4.8 Volt
Output RangeBucks: 0.6 to 1.235V; LDO1: 0.7 to 2.2V; LDO2: 1.5 to 3.3V; LDO3 and LDO4: 0.6 to 1.25V; LDO5: 1.2 to 3.3V
Channels7 Channels
Dropout Voltage0.26 Volt
PowerWise TechnologyAdaptive Voltage Scaling
Output1 VoutMin0.6 Volt
Output1 VoutMax1.235 Volt
Output1 IoutMax800 mA
Output1 TopologyBuck
Output2 VoutMin0.6 Volt
Output2 VoutMax1.235 Volt
Output2 IoutMax800 mA
Output2 TopologyBuck
Output3 VoutMin1.5
Output3 VoutMax3.3 Volt
Output3 IoutMax250 mA
Output3 TopologyLDO
Output4 VoutMin0.7 Volt
Output4 VoutMax2.2 Volt
Output4 IoutMax100 mA
Output4 TopologyLDO
Special FeaturesSPMI compliant with 2 slave domains. 2 Buck regulators; 5 LDOs.
TopologyBuck, LDO
Switching Frequency3600 kHz
Adj Switch FrequencyNo
Sync PinNo
RegTypePower Management Unit
Step-DownYes
Step-UpNo
InvertingNo
FlybackNo
Efficiency (peak)88 %
Adjustable OutputYes
Error FlagNo
On/Off PinYes
Multiple Output CapabilityYes
Temperature Min-40 deg C
Temperature Max+125 deg C
PowerWiseYes
View Using Catalog



Description

The LP5553 is a System Power Management Interface (SPMI) compliant Energy Management Unit for reducing power consumption of low power hand held applications such as dual-core processors and DSPs.

The LP5553 contains 2 advanced, digitally controlled step-down DC/DC converters for supplying variable voltages to a SoC. The device also incorporates 5 programmable low-dropout, low noise linear regulators for powering I/O, peripheral logic blocks, auxiliary system functions, and maintaining memory retention (dual-domain) in shutdown-mode.

The LP5553 implements 2 Non-Request Capable Slaves that are controlled via the SPMI. The LP5553 operates cooperatively with PowerWise ® AVS technology compatible processors to optimize supply voltages adaptively (AVS - Adaptive Voltage Scaling) over process and temperature variations. It also supports dynamic voltage scaling (DVS) using frequency/voltage pairs from pre-characterized look-up tables.

Reliability Metrics

Part NumberProcessEFR RejectEFR Sample SizePPMLTA RejectsLTA Device HoursFITSMTTF (Hours)
LP5553TLCMOS7016561009540004270700104
LP5553TLXCMOS7016561009540004270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Application Notes

TitleSize in KbytesDate640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1857: Application Note 1857 LP5553 Evaluation Kit 3940 Kbytes 25-Mar-09 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

TitleSize in KbytesDate640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
AN-1653: Application Note 1653 User's Graphical User Interface(GUI) for LP555x Evaluation Board PowerWise? Technology Compliant Energy Management Unit1675 Kbytes7-Jun-07Download
AN-1460: Application Note 1460 Emulating the PowerWise Interface Using GPIOs and Software448 Kbytes12-Apr-06Download
AN-1610: Application Note 1610 LP5552 Evaluation Board10829 Kbytes20-May-08Download
AN-1467: Application Note 1467 LP5551 Evaluation Board32843 Kbytes8-Jun-07Download
AN-1467 (Japanese): Application Note 1467 LP5551 Evaluation Board
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">		1847 Kbytes 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
