LP5526

PinoutSpecificationsRegulated LEDs5LED ConfigurationSeriesCurrent MatchingPerfectBoost TypeInductiveSwitching Frequency1000 kHzSwitching TypePWMTotal LED Current201 mAEfficiency (peak)88 %PowerWise TechnologyProgrammable RGB DriverBoost VoltageRegulatedSupply Current1500 mAInput Min Voltage3 VoltI...

product image

LP5526 Picture
See larger image
SeekIC No. : 004398958 Detail

LP5526: PinoutSpecificationsRegulated LEDs5LED ConfigurationSeriesCurrent MatchingPerfectBoost TypeInductiveSwitching Frequency1000 kHzSwitching TypePWMTotal LED Current201 mAEfficiency (peak)88 %PowerWise ...

LP5526 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP5526
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Regulated LEDs5
LED ConfigurationSeries
Current MatchingPerfect
Boost TypeInductive
Switching Frequency1000 kHz
Switching TypePWM
Total LED Current201 mA
Efficiency (peak)88 %
PowerWise TechnologyProgrammable RGB Driver
Boost VoltageRegulated
Supply Current1500 mA
Input Min Voltage3 Volt
Input Max Voltage5.5 Volt
OutputMax Voltage20 Volt
PWM BrightCtrlYes
Analog-V BrightCtrlNo
Ambient Light CompensationNo
RGB-LEDYes
Temperature Min-30 deg C
Temperature Max85 deg C
RegTypeLighting Management Unit
Automotive Selection GuideYes
PowerWiseYes
View Using Catalog



Description

LP5526 is a Lighting Management Unit for portable applications. It is used to drive display backlights, keypad LEDs, RGB LEDs and camera flash LEDs. LP5526 can drive 2 separately connected strings of LEDs with high voltage boost converter. The RGB driver allows driving either individual color LEDs or RGB LED from separate supply power, or it can be used to drive series connecter flash LEDs from high voltage boost converter.

The backlight drivers (MAIN and SUB pins) are both high resolution constant current mode drivers. The flash outputs can drive series connected flash LED with up to 150mA of current. External PWM control can be used for dimming any selected LED outputs or it can be used to trigger the flash. The flash has also 1-second safety timer.

The device is controlled through 2-wire low voltage I2C compatible interface that reduces the number of required connections.

Application Notes

Title Size in Kbytes Date
AN-1502: AN-1502 LP5526 Evaluation Kit 2362 Kbytes 12-Mar-07 Download
AN-1442: Application Note 1442 Design and Programming Examples for Lighting Management Unit LP5526 749 Kbytes 26-Jan-07 Download
AN-1442 (Chinese): Application Note 1442 Design and Programming Examples for Lighting Management Unit LP5526

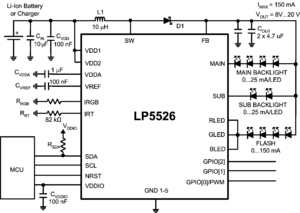

 638 Kbytes   640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">
