Features: MAX8860 pin, package and spec. compatible
LLP space saving package
300mA guaranteed output current
120mV typical dropout @ 300mA
90µA typical quiescent current
1nA typical shutdown mode
60dB typical PSRR
2.5V to 6V input range
120µs typical turn-on time
Stable with small ceramic output capacitors
37µV RMS output voltage noise (10Hz to 100kHz)
Over temperature/over current protection
±2% output voltage toleranceApplicationWireless handsets
DSP core power
Battery powered electronics

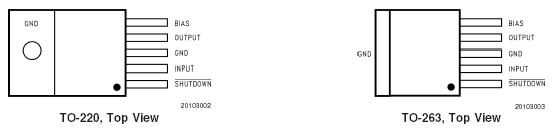

Portable information appliancesPinout
Specifications
| Output Current |
300 mA |
| Output Min |
1.8, 2.5, 2.82, 1.25, 3.3, 3, 2.77 Volt |
| Input Min Voltage |
2.5 Volt |
| Input Max Voltage |
6 Volt |
| Dropout Voltage |
0.12 Volt |
| Adjustable Output |
No, Yes |
| Quiescent Current |
0.09, 0.095 mA |
| On/Off Pin |
Yes |
| Error Flag |
Yes |
| RegType |
LDO |
| Temperature Min |
-40 deg C |
| Temperature Max |
85 deg C |
| Output Voltage |
1.8, 2.5, 2.82, 3.3, 3, 2.77 Volt |
| Output Max |
1.8, 2.5, 6, 2.82, 3.3, 3, 2.77 Volt |
| View Using Catalog |
VIN, VOUT, VSHDN, VSET, VCC,
VFAULT |
−0.3V to 6.5V |
| Fault Sink Current |
20mA |
| Power Dissipation |
(Note 3) |
| Power Dissipation (Note 11) |
Internally limited |
| Storage Temperature Range |
−65°C to 160°C |
| VADJ |
-0.3V to +6V |
| Lead Temperature (10 sec.) |
260°C |
ESD Rating
Human Body Model (Note 6)
Machine Model |
2kV
200V |
Thermal Resistance (JA)
8-Pin MSOP
8-Pin LLP |
223°C/W
(Note 3) |
DescriptionThe LP3982 low-dropout (LDO) CMOS linear regulator is available in 1.8V, 2.5V, 2.77V, 2.82V, 3.0V, 3.3V, and adjustable versions. They deliver 300mA of output current. Packaged in an 8-Pin MSOP, the LP3982 is pin and package compatible with Maxim's MAX8860. The LM3982 is also available in the small footprint LLP package.
The LP3982 suits battery powered applications because of its shutdown mode (1nA typ), low quiescent current (90µA typ), and LDO voltage (120mV typ). The low dropout voltage allows for more utilization of a battery's available energy by operating closer to its end-of-life voltage. The LP3982's PMOS output transistor consumes relatively no drive current compared to PNP LDO regulators.
This PMOS regulator is stable with small ceramic capacitive loads (2.2µF typ).
These devices also include regulation fault detection, a bandgap voltage reference, constant current limiting and thermal overload protection.
Reliability Metrics
| Part Number |
Process |
EFR Reject |
EFR Sample Size |
PPM |
LTA Rejects |
LTA Device Hours |
FITS |
MTTF (Hours) |
| LP3982ILD-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-2.77 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-2.82 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-3.0 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILD-ADJ |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-2.77 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-3.0 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982ILDX-ADJ |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-2.77 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-2.82 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-3.0 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMM-ADJ |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMMX-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMMX-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMMX-2.82 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMMX-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3982IMMX-ADJ |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.For more information on Reliability Metrics, please click here.
More Application Notes
| Title |
Size in Kbytes |
Date |
|
| AN-1219: Application Note 1219 LP3985 MicroSMD‐5 Evaluation Board Instruction |
36 Kbytes |
10-May-04 |
Download |
| AN-1228: Application Note 1228 LP3986 microSMD Evaluation Board Instruction |
29 Kbytes |
14-May-04 |
Download |
| AN-1223: Application Note 1228 LP3986 microSMD Evaluation Board Instruction |
29 Kbytes |
14-May-04 |
Download |
If you have trouble printing or viewing PDF file(s), see Printing Problems.
|
The LP3982 low-dropout (LDO) CMOS linear regulator is available in 1.8V, 2.5V, 2.77V, 2.82V, 3.0V, 3.3V, and adjustable versions. They deliver 300mA of output current. Packaged in an 8-Pin MSOP, the LP3982 is pin and package compatible with Maxim's MAX8860.
The LM3982 is also available in the small footprint LLP package. The LP3982 suits battery powered applications because of its shutdown mode (1nA typ), low quiescent current (90µA typ), and LDO voltage (120mV typ). The low dropout voltage allows for more utilization of a battery's available energy by operating closer to its end-of-life voltage.
The LP3982's PMOS output transistor consumes relatively no drive current compared to PNP LDO regulators.
This PMOS regulator is stable with small ceramic capacitive loads (2.2µF typ). These devices also include regulation fault detection, a bandgap voltage reference, constant current limiting and thermal overload protection.
