LP3970

PinoutSpecificationsInput Min Voltage2.7 VoltInput Max Voltage5.5 VoltOutput RangeLDOs: 1.5 to 3.3V; Buck1: 0.8 to 2V; Buck2: 1.8 to 3.3VChannels13 ChannelsDropout Voltage0.15 VoltPowerWise TechnologyDynamic Voltage ScalingFeedback Tolerance3 %Output1 VoutMin0.8 VoltOutput1 VoutMax2 VoltOutput1 Io...

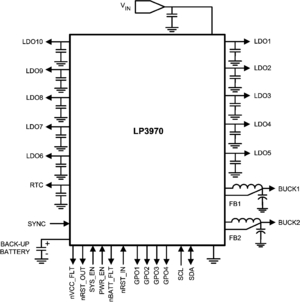

product image

LP3970 Picture
See larger image
SeekIC No. : 004398885 Detail

LP3970: PinoutSpecificationsInput Min Voltage2.7 VoltInput Max Voltage5.5 VoltOutput RangeLDOs: 1.5 to 3.3V; Buck1: 0.8 to 2V; Buck2: 1.8 to 3.3VChannels13 ChannelsDropout Voltage0.15 VoltPowerWise Technolo...

LP3970 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3970
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Input Min Voltage2.7 Volt
Input Max Voltage5.5 Volt
Output RangeLDOs: 1.5 to 3.3V; Buck1: 0.8 to 2V; Buck2: 1.8 to 3.3V
Channels13 Channels
Dropout Voltage0.15 Volt
PowerWise TechnologyDynamic Voltage Scaling
Feedback Tolerance3 %
Output1 VoutMin0.8 Volt
Output1 VoutMax2 Volt
Output1 IoutMax650 mA
Output1 TopologyBuck
Output2 VoutMin1.8 Volt
Output2 VoutMax3.3 Volt
Output2 IoutMax650 mA
Output2 TopologyBuck
Output3 VoutMin1.5
Output3 VoutMax3.4 Volt
Output3 IoutMax300 mA
Output3 TopologyLDO
Output4 VoutMin1.1 Volt
Output4 VoutMax1.1 Volt
Output4 IoutMax100 mA
Output4 TopologyLDO
Special Features2 Buck regulators, 11 LDOs. See datasheet for specific output voltages & currents.
TopologyBuck, LDO
Switching Frequency1600 kHz
Adj Switch FrequencyNo
Sync PinYes
RegTypePower Management Unit
Step-DownYes
Step-UpNo
InvertingNo
FlybackNo
Efficiency (peak)90 %
Adjustable OutputYes
Error FlagYes
On/Off PinYes
Multiple Output CapabilityYes
Temperature Min-40 deg C
Temperature Max125 deg C
PowerWiseYes
View Using Catalog



Description

The LP3970 is a multi-function, programmable Power Management Unit, designed especially for advanced application processors. The LP3970 is optimized for low power handheld PMU applications and provides 11 low dropout, low noise linear regulators, two DC/DC magnetic buck regulators, a back-up battery charger and 4 GPO's. A high speed serial interface is included to program individual regulator output voltages as well as on/off control.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LP3970SQ-31 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQ-35 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQ-44 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQ-45 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQX-31 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQX-35 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQX-44 CMOS7 0 16561 0 0 954000 4 270700104
LP3970SQX-45 CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


More Application Notes

Title Size in Kbytes Date
AN-1620: Application Note 1620 LP3971 USB Evaluation Board 1648 Kbytes 4-May-07 Download
AN-1621: Application Note 1621 LP3972 USB Evaluation Board REV B/5x5 2422 Kbytes 4-May-07 Download
