LP3958

PinoutSpecificationsRegulated LEDs5LED ConfigurationSeriesCurrent MatchingPerfectBoost TypeInductiveSwitching Frequency1000 kHzSwitching TypePWMTotal LED Current96 mAEfficiency (peak)90 %PowerWise TechnologyAutomatic Dimming ControlBoost VoltageRegulatedSupply Current800 mAInput Min Voltage3 VoltI...

product image

LP3958 Picture
See larger image
SeekIC No. : 004398874 Detail

LP3958: PinoutSpecificationsRegulated LEDs5LED ConfigurationSeriesCurrent MatchingPerfectBoost TypeInductiveSwitching Frequency1000 kHzSwitching TypePWMTotal LED Current96 mAEfficiency (peak)90 %PowerWise T...

LP3958 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3958
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Regulated LEDs5
LED ConfigurationSeries
Current MatchingPerfect
Boost TypeInductive
Switching Frequency1000 kHz
Switching TypePWM
Total LED Current96 mA
Efficiency (peak)90 %
PowerWise TechnologyAutomatic Dimming Control
Boost VoltageRegulated
Supply Current800 mA
Input Min Voltage3 Volt
Input Max Voltage5.5 Volt
OutputMax Voltage18 Volt
PWM BrightCtrlYes
Analog-V BrightCtrlNo
Ambient Light CompensationNo
RGB-LEDYes
Temperature Min-30 deg C
Temperature Max85 deg C
RegTypeLighting Management Unit
PowerWiseYes
View Using Catalog



Description

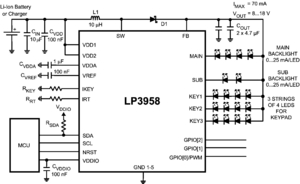

LP3958 is a Lighting Management Unit for portable applications. It is used to drive display backlight and keypad LEDs. The device can drive 5 separately connected strings of LEDs with high voltage boost converter.

The keypad LED driver allows driving LEDs from high voltage boost converter or separate supply voltage.The MAIN and SUB outputs are high resolution current mode drivers. Keypad LED outputs can be used in switch mode and current mode. External PWM control can be used for any selected outputs.

The device is controlled through 2-wire low voltage I2C compatible interface that reduces the number of required connections.

LP3958 is offered in a tiny 25-bump micro-SMD package.
