LP3950

PinoutSpecificationsRegulated LEDs6LED ConfigurationParallelBoost TypeInductiveSwitching Frequency2000 kHzSwitching TypePWMTotal LED Current300 mAEfficiency (peak)90 %PowerWise TechnologyAudio Adaptive RGB LED DriverBoost VoltageRegulatedSupply Current1 mAInput Min Voltage3 VoltInput Max Voltage7....

product image

LP3950 Picture
See larger image
SeekIC No. : 004398869 Detail

LP3950: PinoutSpecificationsRegulated LEDs6LED ConfigurationParallelBoost TypeInductiveSwitching Frequency2000 kHzSwitching TypePWMTotal LED Current300 mAEfficiency (peak)90 %PowerWise TechnologyAudio Adapt...

LP3950 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3950
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Regulated LEDs6
LED ConfigurationParallel
Boost TypeInductive
Switching Frequency2000 kHz
Switching TypePWM
Total LED Current300 mA
Efficiency (peak)90 %
PowerWise TechnologyAudio Adaptive RGB LED Driver
Boost VoltageRegulated
Supply Current1 mA
Input Min Voltage3 Volt
Input Max Voltage7.2 Volt
OutputMax Voltage5.3 Volt
PWM BrightCtrlYes
Analog-V BrightCtrlNo
Ambient Light CompensationNo
RGB-LEDYes
Temperature Min-40 deg C
Temperature Max85 deg C
RegTypeLighting Management Unit
PowerWiseYes
View Using Catalog



Description

The LP3950 is a color LED driver with a built-in audio synchronization feature for any analog audio input such as polyphonic ring tones and MP3 music. LEDs can be synchronized to an audio signal with two methods - amplitude and frequency. Also several fine tuning options are available for differentiation purposes. The chip also has an unique AGC (Automatic Gain Control) feature which tracks the input signal level and automatically adjusts the gain to an optimal value.

The LP3950 has a high efficiency magnetic DC/DC converter with programmable output voltage and switching frequency. The converter has high output current capability so it is also able to drive flash LEDs in camera phone applications.

The LP3950 is similar to LP3933 and LP3936 in that the color LEDs (or RGB LEDs) can also be programmed to generate light patterns (programmable color, intensity, on/off timing, slope and blinking cycle).

All functions are software controllable through a SPI or I2C compatible interface but the device also supports one pin control for enabling predefined (default) audio synchronization mode.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LP3950SL CMOS7 0 16561 0 0 954000 4 270700104
LP3950SLX CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


More Application Notes

Title Size in Kbytes Date
AN-460: Application Note 460 LM34/LM35 Precision Monolithic Temperature Sensors 306 Kbytes 20-Sep-02 Download
AN-460 (Japanese): Application Note 460 LM34/LM35 Precision Monolithic Temperature Sensors

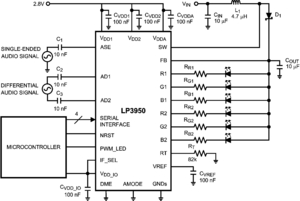

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">		 322 Kbytes
