LP3933

Features: ` High Efficiency Programmable 300 mA Magnetic Boost DC-DC converter` 2 separately controlled PWM RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking patterns` FLASH function with up to 6 outputs, each up to 120 mA` 4 constant current LED drivers with pro...

product image

LP3933 Picture
See larger image
SeekIC No. : 004398858 Detail

LP3933: Features: ` High Efficiency Programmable 300 mA Magnetic Boost DC-DC converter` 2 separately controlled PWM RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking patte...

LP3933 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3933
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High Efficiency Programmable 300 mA Magnetic Boost DC-DC converter
` 2 separately controlled PWM RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking patterns
` FLASH function with up to 6 outputs, each up to 120 mA
` 4 constant current LED drivers with programmable 8-bit adjustment (0 . 25 mA/LED)
` 2 constant current LED drivers with programmable 8-bit adjustment (0 . 25 mA/LED)
`Functions software controlled through SPI interface
` Additional LED on/off and dimming hardware control
` Programmable low current Standby mode
` Low voltage digital interface down to 1.8V
` Space efficient 32-pin thin CSP laminate package


Pinout

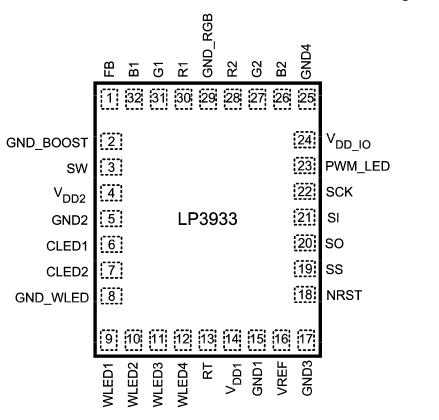

Connection Diagram


Specifications

V (SW, FB, WLED1-4, CLED1-2,
R1-2, G1-2, B1-2) pins:
Voltage to GND (Notes 3, 4) ..................−0.3V to +7.2V
VDD1, VDD2, VDD_IO −0.3V to +6.0V
Voltage on Logic Pins ....................-0.3V to VDD_IO +
                                                                                            0.3V, with 6.0V max
I (R1, G1, B1, R2, G2, B2)
(Note 5)  ................................150 mA
I (VREF)  .................................10 A
Continuous Power Dissipation
(Note 6) Internally Limited
Junction Temperature (TJ-MAX) .....................125°C
Storage Temperature Range   ...............−65°C to +150°C
Maximum Lead Temperature
(Reflow soldering, 3 times)
(Note 7)  ................................260°C


Description

The LP3933 is a complete lighting management system designed for portable wireless applications. It contains a boost DC/DC converter, 4 white-LED drivers to drive the main LCD panel backlight, 2 white-LED drivers for the sub- LCD panel and two sets of RGB/FLASH LED drivers.

Both backlight drivers have 8-bit constant current drivers that are separately adjustable and matched to 0.5% (typ.). The RGB LED drivers are PWM-driven with programmable color, intensity and blinking patterns. In addition, they feature a FLASH function to support picture taking with cameraenabled cellular phones.

An efficient magnetic boost DC/DC converter provides the required bias for LEDs, operating from a single Li-Ion battery. The DC/DC converter output voltage is user programmable from 4.1V to 5.3V for adapting to different LED types and for efficiency optimization. All functions are software controllable through a SPI interface and 19 internal registers.
