LP3879

Features: ` Standard output voltage: 1.00V, 1.20V` Custom voltages available from 1.0V to 1.2V (50 mV increments)` Input voltage: 2.5 to 6V` 1% initial output accuracy` Designed for use with low ESR ceramic capacitors` Very low output noise` Sense option improves load regulation` 8 Lead PSOP and L...

product image

LP3879 Picture
See larger image
SeekIC No. : 004398827 Detail

LP3879: Features: ` Standard output voltage: 1.00V, 1.20V` Custom voltages available from 1.0V to 1.2V (50 mV increments)` Input voltage: 2.5 to 6V` 1% initial output accuracy` Designed for use with low ESR...

LP3879 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3879
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Standard output voltage: 1.00V, 1.20V
` Custom voltages available from 1.0V to 1.2V (50 mV increments)
` Input voltage: 2.5 to 6V
` 1% initial output accuracy
` Designed for use with low ESR ceramic capacitors
` Very low output noise
` Sense option improves load regulation
` 8 Lead PSOP and LLP surface mount packages
` <10 A quiescent current in shutdown
` Low ground pin current at all loads
` High peak current capability
` Over-temperature/over-current protection
` -40°C to +125°C junction temperature range




Application

· ASIC Power Supplies In:
- Desktops, Notebooks and Graphic Cards
- Set Top Boxes, Printers and Copiers
· DSP and FPGA Power Supplies
· SMPS Post-Regulator
· Medical Instrument

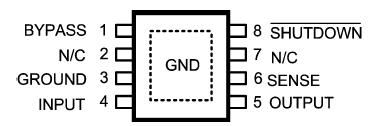

Pinout

Connection Diagram




Specifications

Storage Temperature Range ............−65°C to +150°C
Operating Junction Temperature
Range ................................................-40°C to +125°C
Lead Temperature (Soldering, 5seconds) ...........260°C
ESD Rating (Note 2) ...............................................2 kV
Shutdown Pin.......................................................... 1kV
Power Dissipation (Note 3)................ Internally Limited
Input Supply Voltage (Survival) ..............−0.3V to +16V
Input Supply Voltage (Typical
Operating).................................................. 2.5V to +6V
SENSE Pin .................................................−0.3V to +6V
Output Voltage (Survival) (Note 4) ...........−0.3V to +6V
IOUT (Survival) Short Circuit
Protected
Input-Output Voltage (Survival)
(Note 5) .................................................−0.3V to +16V

Output Current 800 mA
Output Min 1, 1.2 Volt
Input Min Voltage 2.5 Volt
Input Max Voltage 6 Volt
Dropout Voltage Undefined Volt
Adjustable Output No
Quiescent Current 0.2 mA
PSRR 60 dB
Voltage Noise (rms) 18 uV
On/Off Pin Yes
Error Flag No
RegType LDO
Temperature Min -40 deg C
Temperature Max 125 deg C
Output Voltage 1, 1.2 Volt
Output Max 1, 1.2 Volt
View Using Catalog





Description

The LP3879 is a 800 mA fixed-output voltage regulator designed to provide high performance and low noise in applications requiring output voltages between 1.0V and 1.2V.

Using an optimized VIP™ (Vertically Integrated PNP) process, the LP3879 delivers superior performance: Ground Pin Current: Typically 5.5 mA @ 800 mA load, and 200 A @ 100 A load.

Low Power Shutdown: The LP3879 draws less than 10 A quiescent current when shutdown pin is pulled low.

Precision Output: Guaranteed output voltage accuracy is 1% at room temperature.

Low Noise: Broadband output noise is only 18 V (typical) with 10 nF bypass capacitor.
