LP3876-ADJ

Features: ` Ultra low dropout voltage` Low ground pin current` Load regulation of 0.08%` 1A quiescent current in shutdown mode` Guaranteed output current of 3A DC` Available in TO-263 and TO-220 packages` Minimum output capacitor requirements` Overtemperature/overcurrent protection` −40°C to...

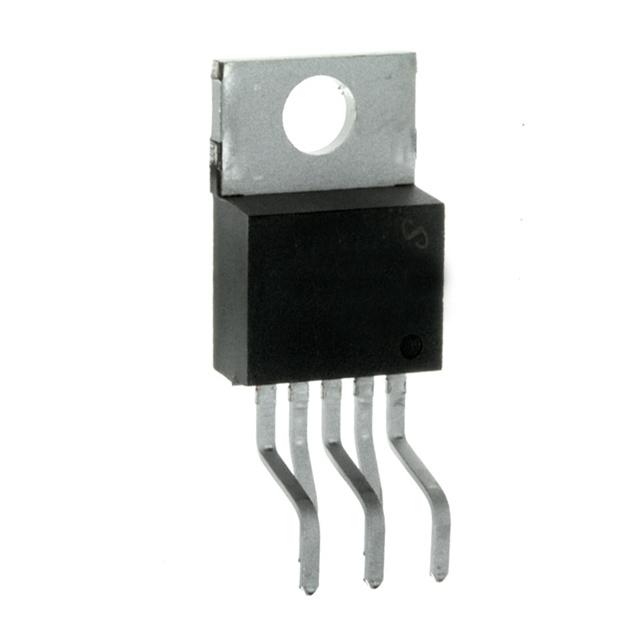

product image

LP3876-ADJ Picture
SeekIC No. : 004398824 Detail

LP3876-ADJ: Features: ` Ultra low dropout voltage` Low ground pin current` Load regulation of 0.08%` 1A quiescent current in shutdown mode` Guaranteed output current of 3A DC` Available in TO-263 and TO-220 pac...

floor Price/Ceiling Price

Part Number:
LP3876-ADJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Ultra low dropout voltage
` Low ground pin current
` Load regulation of 0.08%
` 1A quiescent current in shutdown mode
` Guaranteed output current of 3A DC
` Available in TO-263 and TO-220 packages
` Minimum output capacitor requirements
` Overtemperature/overcurrent protection
` −40°C to +125°C junction temperature range





Application

·Microprocessor power supplies
·GTL, GTL+, BTL, and SSTL bus terminators
·Power supplies for DSPs
·SCSI terminator
·Post regulators
·High efficiency linear regulators
·Battery chargers
·Other battery powered applications





Pinout

  Connection Diagram




Specifications

Output Current 3000 mA
Output Min 1.216 Volt
Input Min Voltage 2.5 Volt
Input Max Voltage 7 Volt
Dropout Voltage 0.8 Volt
Adjustable Output Yes
Quiescent Current 6 mA
On/Off Pin Yes
Error Flag No
RegType LDO
Temperature Min -40 deg C
Temperature Max 125 deg C
Output Max 6.2 Volt
View Using Catalog


If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Storage Temperature Range .....................−65°C to +150°C
Lead Temperature (Soldering, 5 sec.) ..........................260°C
ESD Rating (Note 3) ..........................................................2 kV
Power Dissipation (Note 2) ...........................Internally Limited
Input Supply Voltage (Survival)........................ −0.3V to +7.5V
Shutdown Input Voltage (Survival) .....................−0.3V to 7.5V
Output Voltage (Survival), (Note 6), (Note 7) ....−0.3V to +6.0V

IOUT (Survival) .......................................Short Circuit Protected






Description

The LP3876-ADJ fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3876-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3876-ADJ to operate under extremely low dropout conditions.

Dropout Voltage: Ultra low dropout voltage; typically 80mV at 300mA load current and 800mV at 3A load current.Ground Pin Current: Typically 6mA at 3A load current. Shutdown Mode: Typically 1A quiescent current when the shutdown pin is pulled low.

Adjustable Output Voltage: The output voltage may be programmed via two external resistors.
