Features: Ultra low dropout voltageLow ground pin currentLoad regulation of 0.06%10nA quiescent current in shutdown modeGuaranteed output current of 1.5A DCAvailable in TO-263, TO-220 and SOT-223 packagesMinimum output capacitor requirementsOvertemperature/overcurrent protection-40 to +125 junctio...
LP3875-ADJ: Features: Ultra low dropout voltageLow ground pin currentLoad regulation of 0.06%10nA quiescent current in shutdown modeGuaranteed output current of 1.5A DCAvailable in TO-263, TO-220 and SOT-223 pa...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

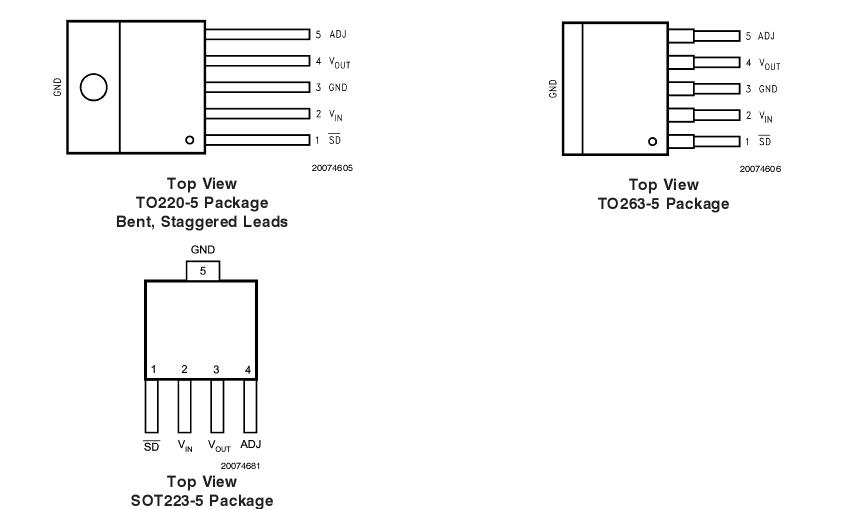

PinoutSpecificationsOutput Current1500 mAOutput Min0.6 VoltInput Min Voltage2.7 VoltInput Max Volt...
Storage Temperature Range.............................................. -65 to +150
Lead Temperature
(Soldering, 5 sec.).............................................................................. 260
ESD Rating (Note 3)............................................................................. 2 kV
Power Dissipation (Note 2)............................................. Internally Limited
Input Supply Voltage (Survival)........................................... -0.3V to +7.5V
Shutdown Input Voltage
(Survival)............................................................................. -0.3V to +7.5V
Output Voltage (Survival), (Note
6), (Note 7).......................................................................... -0.3V to +6.0V
IOUT (Survival) Short Circuit Protected
The LP3875-ADJ fast ultra low-dropout linear regulators op- erate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3875-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3875-ADJ to operate under ex- tremely low dropout conditions.
Dropout Voltage: Ultra low dropout voltage; typically 38mV at 150mA load current and 380mV at 1.5A load current. Ground Pin Current: Typically 6mA at 1.5A load current. Shutdown Mode: Typically 10nA quiescent current when the shutdown pin is pulled low. Adjustable Output Voltage: The output voltage may be programmed via two external resistors.
