LP3874

Features: Ultra low dropout voltageLow ground pin currentLoad regulation of 0.04%10nA quiescent current in shutdown modeGuaranteed output current of 0.8A DCAvailable in TO-263, TO-220 and SOT-223 packagesOutput voltage accuracy ± 1.5%Error flag indicates output statusSense option improves load reg...

product image

LP3874 Picture
SeekIC No. : 004398819 Detail

LP3874: Features: Ultra low dropout voltageLow ground pin currentLoad regulation of 0.04%10nA quiescent current in shutdown modeGuaranteed output current of 0.8A DCAvailable in TO-263, TO-220 and SOT-223 pa...

floor Price/Ceiling Price

Part Number:
LP3874
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra low dropout voltage
Low ground pin current
Load regulation of 0.04%
10nA quiescent current in shutdown mode
Guaranteed output current of 0.8A DC
Available in TO-263, TO-220 and SOT-223 packages
Output voltage accuracy ± 1.5%
Error flag indicates output status
Sense option improves load regulation
Minimum output capacitor requirements
Overtemperature/overcurrent protection
-40 to +125junction temperature range





Application

Microprocessor power supplies
GTL, GTL+, BTL, and SSTL bus terminators
Power supplies for DSPs
SCSI terminator
Post regulators
High efficiency linear regulators
Battery chargers
Other battery powered applications





Pinout

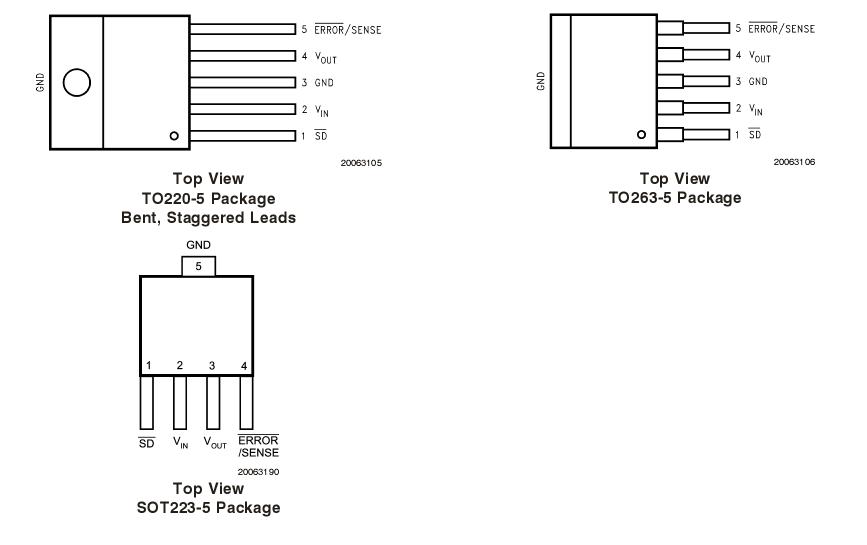

  Connection Diagram




Specifications

Storage Temperature Range ........................................-65 to +150

Lead Temperature
(Soldering, 5 sec.) ........................................................................260
ESD Rating (Note 3)....................................................................... 2 kV
Power Dissipation (Note 2)........................................ Internally Limited
Input Supply Voltage (Survival) ......................................-0.3V to +7.5V
Shutdown Input Voltage(Survival).................................... -0.3V to 7.5V
Output Voltage (Survival), (Note6), (Note 7) ..................-0.3V to +6.0V
IOUT(Survival) Short Circuit Protected
Maximum Voltage for ERROR
Pin.................................................................................................... VIN
Maximum Voltage for SENSE Pin..................................................... VOUT



Output Current 800 mA
Output Min 1.8, 2.5, 3.3, 5 Volt
Input Min Voltage 2.5 Volt
Input Max Voltage 7 Volt
Dropout Voltage 0.24 Volt
Adjustable Output No
Quiescent Current 5 mA
On/Off Pin Yes
Error Flag No
RegType LDO
Temperature Min -40 deg C
Temperature Max 125 deg C
Output Voltage 1.8, 2.5, 3.3, 5 Volt
Output Max 1.8, 2.5, 3.3, 5 Volt
View Using Catalog





Description

The LP3871/LP3874 series of fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3871/LP3874 are developed on a CMOS process which allows low quies- cent current operation independent of output load current. This CMOS process also allows the LP3871/LP3874 to op- erate under extremely low dropout conditions.

Dropout Voltage: Ultra low dropout voltage; typically 24mV at 80mA load current and 240mV at 0.8A load current. Ground Pin Current: Typically 6mA at 0.8A load current. Shutdown Mode: Typically 10nA quiescent current when the shutdown pin is pulled low.

Error Flag: Error flag goes low when the output voltage drops 10% below nominal value. SENSE: Sense pin improves regulation at remote loads. Precision Output Voltage: Multiple output voltage options are available ranging from 1.8V to 5.0V with a guaranteed accuracy of ±1.5% at room temperature, and ±3.0% over all conditions (varying line, load, and temperature).
