LP3856-ADJ

Features: Ultra low dropout voltageStable with selected ceramic capacitorsLow ground pin current Load regulation of 0.08%10nA quiescent current in shutdown modeGuaranteed output current of 3A DCAvailable in TO-263 and TO-220 packagesOvertemperature/overcurrent protection−40°C to +125°C junct...

product image

LP3856-ADJ Picture
See larger image
SeekIC No. : 004398804 Detail

LP3856-ADJ: Features: Ultra low dropout voltageStable with selected ceramic capacitorsLow ground pin current Load regulation of 0.08%10nA quiescent current in shutdown modeGuaranteed output current of 3A DCAvai...

LP3856-ADJ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3856-ADJ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra low dropout voltage
Stable with selected ceramic capacitors
Low ground pin current
Load regulation of 0.08%
10nA quiescent current in shutdown mode
Guaranteed output current of 3A DC
Available in TO-263 and TO-220 packages
Overtemperature/overcurrent protection
−40°C to +125°C junction temperature range


Application

Microprocessor power supplies
GTL, GTL+, BTL, and SSTL bus terminators
Power supplies for DSPs
SCSI terminator
Post regulators
High efficiency linear regulators
Battery chargers
Other battery powered applications


Pinout

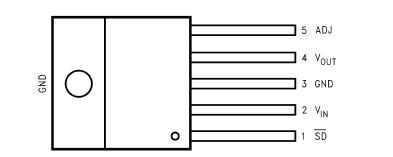

Connection Diagram


Specifications

Storage Temperature Range                                     −65°C to +150°C
Lead Temperature (Soldering, 5 sec.)                                         260°C
ESD Rating (Note 3)                                                                       2 kV
Power Dissipation (Note 2) Internally Limited
    Input Supply Voltage (Survival)                                 −0.3V to +7.5V
Shutdown Input Voltage (Survival)                                  −0.3V to 7.5V
Output Voltage (Survival), (Note 6), (Note 7)                −0.3V to +6.0V
IOUT (Survival)                                                   Short Circuit Protected


Description

The LP3856-ADJ fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3856-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3856-ADJ to operate under extremely low dropout conditions.

Dropout Voltage: Ultra low dropout voltage; typically 39mV at 300mA load current and 390mV at 3A load current.

Ground Pin Current: Typically 4mA at 3A load current.

Shutdown Mode: Typically 10nA quiescent current when the shutdown pin is pulled low.

Adjustable Output Voltage: The output voltage may be programmed via two external resistors.
