LP3202

Features: `High Efficiency: 93%`1.5MHz Fixed-Frequency PWM Operation`Adjustable Output From 0.6V to VIN`1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V Fixed`650mA Output Current, 1.1A Peak Current`No Schottky Diode Required`100% Duty Cycle Low Dropout Operation`Available in SOT23-5 Package`Short Circuit an...

product image

LP3202 Picture
SeekIC No. : 004398754 Detail

LP3202: Features: `High Efficiency: 93%`1.5MHz Fixed-Frequency PWM Operation`Adjustable Output From 0.6V to VIN`1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V Fixed`650mA Output Current, 1.1A Peak Current`No Schottk...

floor Price/Ceiling Price

Part Number:
LP3202
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Efficiency: 93%
`1.5MHz Fixed-Frequency PWM Operation
`Adjustable Output From 0.6V to VIN
`1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V Fixed
`650mA Output Current, 1.1A Peak Current
`No Schottky Diode Required
`100% Duty Cycle Low Dropout Operation
`Available in SOT23-5 Package
`Short Circuit and Thermal Protection
`Over Voltage Protection
`Low than 1A Shutdown Current



Application

·Portable Media Players/MP3 players
·Cellular and Smart mobile phone
·PDA
·DSC
·Wireless Card



Pinout

  Connection Diagram

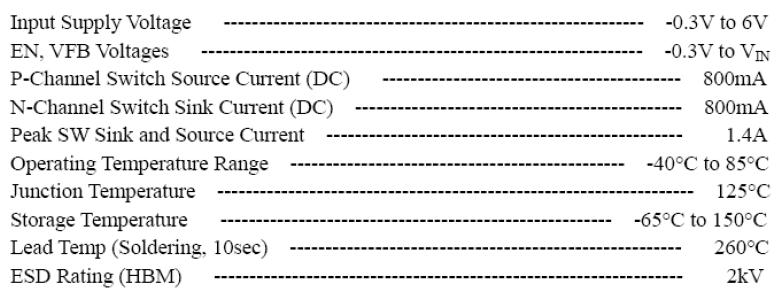

Specifications

  Connection Diagram


Description

The LP3202 is a constant frequency, current mode,PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency. The 2.1V to 5.5V input voltage range makes the LP3202 is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources within the range such as cellular phones, PDAs and handy-terminals.

Internal synchronous rectifier with low RDS(ON) dramatically reduces conduction loss at PWM mode.The internal synchronous switch increases efficiency while eliminate the need for an external Schottky diode.The switching ripple is easily smoothed-out by small package filtering elements due to a fixed operation frequency of 1.5MHz. This along with small SOT-23-5 package provide small PCB area application. Other features include soft start, lower internal reference voltage with 2% accuracy, over temperature protection, and over current protection.
