LP2985AITP-5.0/NOPB, US $ .31-.53 , National Semiconductor (TI), LP2985AITP-5.0/NOPB DataSheet download, circuit diagram from SeekIC.com

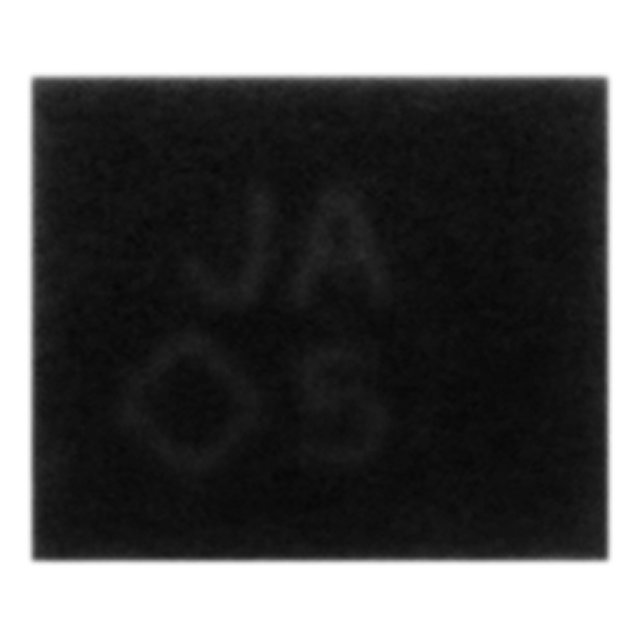

See larger image

SeekIC No. : 00510469 Detail

LP2985AITP-5.0/NOPB: Low Dropout (LDO) Regulators

LP2985AITP-5.0/NOPB Data Sheet

US $ .31~.53 / Piece | Get Latest Price

Part Number:: LP2985AITP-5.0/NOPB
Mfg:: National Semiconductor (TI)
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.53
$.41
$.36
$.31

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LP2901 evaluate
SpecificationsSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . ....
LP2901D evaluate
US $.27 - .43 / Piece

Comparator ICs Quad Differential
LP2901DE4 evaluate
US $.23 - .38 / Piece

Comparator ICs Quad Low-Power Differential

Product Details

Quick Details

Input Voltage MAX :	16 V	Output Voltage :	5 V
Dropout Voltage (Max) :	0.003 V at 0 mA, 0.01 V at 1 mA, 0.06 V at 10 mA, 0.15 V at 50 mA, 0.35 V at 150 mA	Output Current :	0.15 A
Number of Outputs :	1	Output Type :	Fixed
Maximum Operating Temperature :	+ 125 C	Mounting Style :	SMD/SMT
Package / Case :	uSMD

Description

Load Regulation :
Number of Outputs : 1
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Output Voltage : 5 V
Output Type : Fixed
Input Voltage MAX : 16 V
Output Current : 0.15 A
Package / Case : uSMD
Dropout Voltage (Max) : 0.003 V at 0 mA, 0.01 V at 1 mA, 0.06 V at 10 mA, 0.15 V at 50 mA, 0.35 V at 150 mA

Parameters:

Technical/Catalog Information	LP2985AITP-5.0/NOPB
Vendor	National Semiconductor
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	5-MicroSMD
Packaging	Tape & Reel (TR)
Regulator Topology	Positive Fixed
Current - Output	150mA
Voltage - Output	5V
Operating Temperature	-40°C ~ 125°C
Voltage - Input	6 ~ 16 V
Number of Regulators	1
Current - Limit (Min)	350mA
Current Short Circuit (Isc)	400mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP2985AITP 5 0 NOPB LP2985AITP50NOPB LP2985AITP 5 0 ND LP2985AITP50ND LP2985AITP-5.0
