LP2981

Features: Ultra low dropout voltage Output voltage accuracy 0.75% (A Grade) Guaranteed 100 mA output current Smallest possible size (SOT-23, micro SMD package) < 1 A quiescent current when shutdownLow ground pin current at all load currents High peak current capability (300 mA typical)Wide sup...

product image

LP2981 Picture
See larger image
SeekIC No. : 004398700 Detail

LP2981: Features: Ultra low dropout voltage Output voltage accuracy 0.75% (A Grade) Guaranteed 100 mA output current Smallest possible size (SOT-23, micro SMD package) < 1 A quiescent current when shutd...

LP2981 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP2981
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra low dropout voltage
Output voltage accuracy 0.75% (A Grade)
Guaranteed 100 mA output current
Smallest possible size (SOT-23, micro SMD package)
< 1 A quiescent current when shutdown
Low ground pin current at all load currents
High peak current capability (300 mA typical)
Wide supply voltage range (16V max)
Fast dynamic response to line and load
Low ZOUT over wide frequency range
Overtemperature/overcurrent protection
−40°C to +125°C junction temperature range




Application

Cellular Phone
Palmtop/Laptop Computer
Personal Digital Assistant (PDA)
Camcorder, Personal Stereo, Camera




Pinout

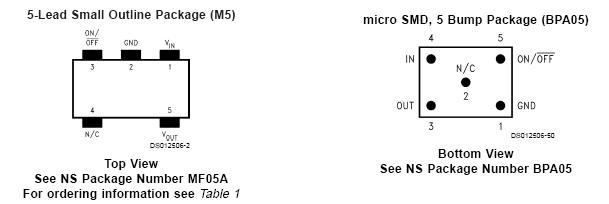

Connection Diagram




Specifications

Storage Temperature Range.................................................. −65°C to +150°C
Operating Junction Temperature Range.................................. −40°C to +125°C
Lead Temperature (Soldering, 5 sec.)....................................................... 260°C
ESD Rating ...................................................................................................2 kV
Power Dissipation ....................................................................Internally Limited
Input Supply Voltage (Survival).................................................... −0.3V to +16V
Input Supply Voltage (Operating) ....................................................2.1V to +16V
Shutdown Input Voltage (Survival) ...............................................−0.3V to +16V
Output Voltage (Survival ) ...............................................................−0.3V to +9V
IOUT (Survival) ................................................................Short Circuit Protected
Input-Output Voltage (Survival)................................................... −0.3V to +16V




Description

The LP2981 is a 100 mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications.Using an optimized VIP™ (Vertically Integrated PNP) process,the LP2981 delivers unequaled performance in all specifications critical to battery-powered designs:
Dropout Voltage. Typically 200 mV @ 100 mA load, and 7 mV @ 1 mA load.
Ground Pin Current. Typically 600 A @ 100 mA load, and 80 A @ 1 mA load.
Sleep Mode. Less than 1 A quiescent current when ON/OFF pin is pulled low.
Smallest Possible Size. SOT-23and micro SMD packages use an absolute minimum board space.
Precision Output. 0.75% tolerance output voltages available (A grade).
Eleven voltage options, from 2.5V to 5.0V, are available as standard products.
