LP-40-1200: XFRMR PWR 115/230V 20VAC 2.4A

LP-40-1200 Data Sheet

US $ 7.76~14.14 / Piece | Get Latest Price

Part Number:: LP-40-1200
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100

Unit Price
$14.14
$10.95
$9.67
$8.65
$7.76

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LP-40-150 evaluate
US $3.99 - 7.67 / Piece

XFRMR PWR 115/230V 20VAC 300MA
LP-40-300 evaluate
US $5.39 - 10.1 / Piece

XFRMR PWR 115/230V 20VAC 600MA

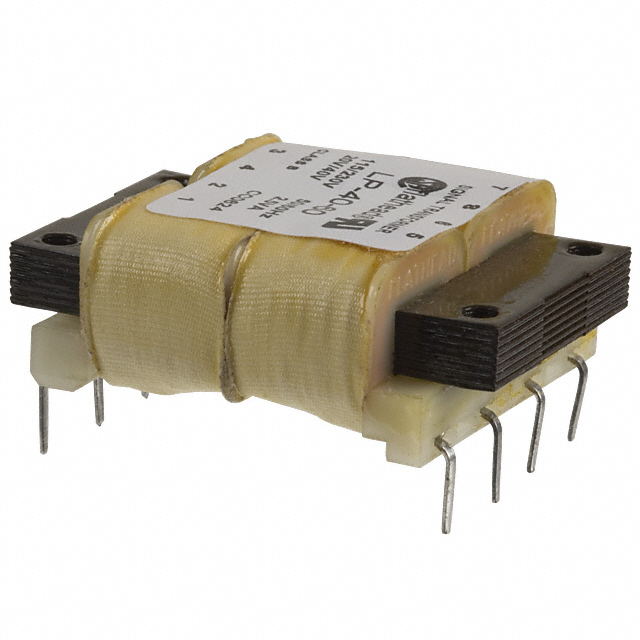

LP-40-60 evaluate
US $3.84 - 3.84 / Piece

XFRMR PWR 115/230V 20VAC 120MA

Product Details

Quick Details

Series:	LP	Manufacturer:	Signal Transformer
Transformer Type:	-	Number of Channels per Chip :	5
Type:	Semi Toroidal	Maximum Power:	48 VA
Turns Ratio - Primary:Secondary:	-	Inductance:	-
Primary Winding(s):	Dual	Current Rating:	-
Secondary Winding(s):	Dual, No Center Tap	DC Resistance (DCR):	-
Series Output Voltage @ Current:	40 VAC @ 1.2A	E.T.:	-
Parallel Output Voltage @ Current:	20 VAC @ 2.4A	Mounting Type:	Through Hole
Size / Dimension:	79.20mm L x 63.50mm W	Height - Seated (Max):	34.90mm

Description

Manufacturer: Signal Transformer
Transformer Type: -
Turns Ratio - Primary:Secondary: -
Inductance: -
Current Rating: -
Secondary Winding(s): Dual, No Center Tap
DC Resistance (DCR): -
E.T.: -
Mounting Type: Through Hole
Termination Style: PC Pin
Primary Winding(s): Dual
Height - Seated (Max): 34.90mm
Series: LP
Type: Semi Toroidal
Maximum Power: 48 VA
Series Output Voltage @ Current: 40 VAC @ 1.2A
Parallel Output Voltage @ Current: 20 VAC @ 2.4A
Size / Dimension: 79.20mm L x 63.50mm W

Parameters:

Technical/Catalog Information	LP-40-1200
Vendor	Signal Transformers
Category	Transformers
Mounting Type	Through Hole
Type	Semi Toroidal
Primary Winding(s)	Dual
Secondary Winding(s)	Dual, No Center Tap
Series Output Voltage @ Current	40 VAC @ 1.2A
Parallel Output Voltage @ Current	20 VAC @ 2.4A
Maximum Power	48 VA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LP 40 1200 LP401200 595 1346 ND 5951346ND 595-1346
