LNJ8W0C83RA, US $ .08-.28, LNJ8W0C83RA DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003613444 Detail

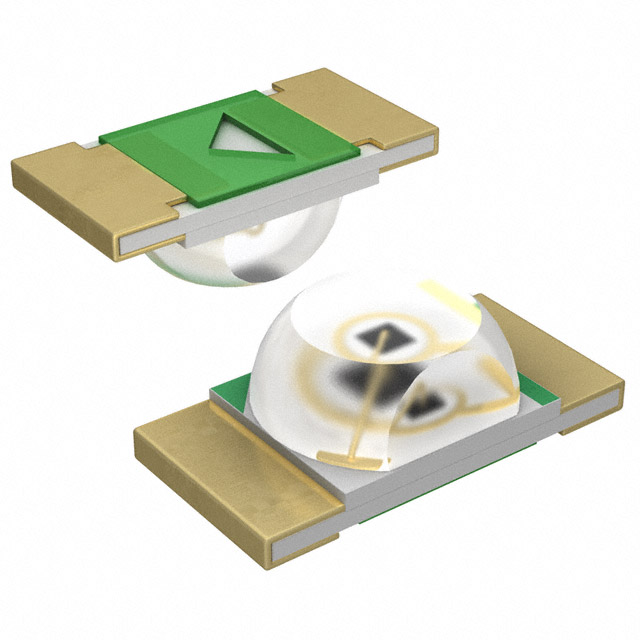

LNJ8W0C83RA: LED ORANGE WIDE ANGLE 0603 SMD

LNJ8W0C83RA Data Sheet

US $ .08~.28 / Piece | Get Latest Price

Part Number:: LNJ8W0C83RA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000

Unit Price
$.28
$.18
$.15
$.13
$.1
$.08

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LNJ806K5SRX evaluate
US $.08 - .27 / Piece

LED SOFT ORANGE S-J TYPE 0805
LNJ806K5SUX evaluate
US $.05 - .06 / Piece

LED SOFT ORANGE S-J TYPE 0805
LNJ806R58RW evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr() Tstg() ...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Orange	Millicandela Rating:	17.5mcd
Voltage - Forward (Vf) Typ:	1.95V	Current - Test:	5mA
Wavelength - Dominant:	620nm	Supply Current (Max) :	0.0023 mA
Wavelength - Peak:	630nm	Viewing Angle:	-
Lens Type:	-	Lens Style/Size:	Round with Flat Top, 0.6mm
Package / Case:	0603 (1608 Metric)	Size / Dimension:	1.60mm L x 0.80mm W
Height:	0.55mm	Mounting Type:	Surface Mount

Description

Series: -
Package / Case: 0603 (1608 Metric)
Size / Dimension: 1.60mm L x 0.80mm W
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Current - Test: 5mA
Height: 0.55mm
Color: Orange
Viewing Angle: -
Lens Type: -
Wavelength - Peak: 630nm
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 17.5mcd
Voltage - Forward (Vf) Typ: 1.95V
Wavelength - Dominant: 620nm
Lens Style/Size: Round with Flat Top, 0.6mm

Parameters:

Technical/Catalog Information	LNJ8W0C83RA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Orange
Lens Style/Size	Round with Domed Top
Millicandela Rating	17.5mcd
Voltage - Forward (Vf) Typ	1.95V
Wavelength - Dominant	620nm
Wavelength - Peak	630nm
Current - Test	5mA
Viewing Angle	165°
Lens Type	-
Luminous Flux	96 mlm
Package / Case	0603 (1608 metric)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ8W0C83RA LNJ8W0C83RA P14141DKR ND P14141DKRND P14141DKR
