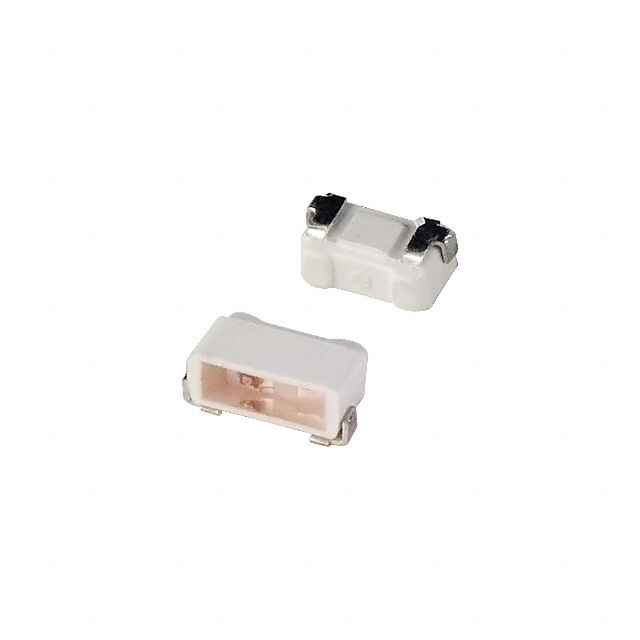

LNJ810L6DRA

Series: -
Packaging: Cut Tape (CT)Alternate Packaging
Current - Test: 10mA
Color: Orange
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: Clear, Tinted
Mounting Type: Surface Mount, Right Angle
Wavelength - Peak: 630nm
Package / Case: 0805 (2012 Metric)
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Forward (Vf) Typ: 1.93V
Height: 1.00mm
Millicandela Rating: 2.5mcd
Lens Style/Size: Rectangle with Flat Top, 2mm x 0.7mm
Size / Dimension: 2.20mm L x 1.20mm W


Specifications

Lighting Color	PD(mW)	IF(mA)	IFP(mA)*	VR(V)	Topr()	Tstg()
Red	60	20	60	4	-25 ~ +80	-30 ~ +85
Red	60	20	60	3	-25 ~ +80	-30 ~ +85
Green	60	20	60	4	-25 ~ +80	-30 ~ +85
Amber	60	20	60	4	-25 ~ +80	-30 ~ +85
Orange	60	20	60	3	-25 ~ +80	-30 ~ +85

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec


Parameters:

Technical/Catalog Information	LNJ810L6DRA
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Orange
Lens Style/Size	Rectangle, 1.8mm x 0.65mm
Millicandela Rating	2.5mcd
Voltage - Forward (Vf) Typ	1.93V
Wavelength - Dominant	630nm
Wavelength - Peak	630nm
Current - Test	10mA
Viewing Angle	110°
Lens Type	Clear, Red Tinted
Luminous Flux	7 mlm
Package / Case	2.2mm x 1.2mm x 1mm
Mounting Type	Surface Mount, Right Angle
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ810L6DRA LNJ810L6DRA P519TR ND P519TRND P519TR
