SeekIC No. : 003614096 Detail

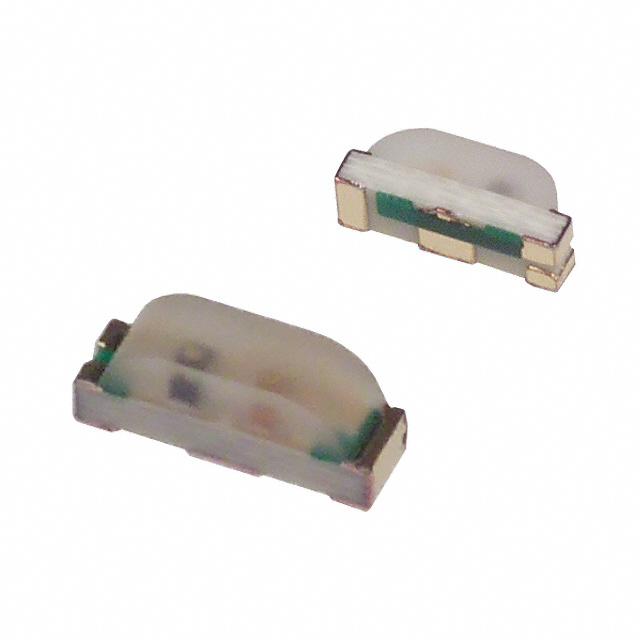

LNJ123W8PRZ: LED YG/RED SIDE VIEW 2-COLOR SMD

LNJ123W8PRZ Data Sheet

Get Latest Price

Part Number:: LNJ123W8PRZ
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LNJ107W5ARA1 evaluate
LED GREEN/ORANGE S TYPE SMD
LNJ107W5PRW evaluate
US $.15 - .43 / Piece

LED RED/GREEN HI BRT S TYPE SMD
LNJ115W85RA1 evaluate
US $.29 - .67 / Piece

LED BLUE/RED TSS BI-COLOR SMD

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Green, Red	Millicandela Rating:	5mcd Green, 4mcd Red
Voltage - Forward (Vf) Typ:	2.03V Green, 1.72V Red	Current - Test:	10mA
Wavelength - Dominant:	-	Wavelength - Peak:	565nm, 655nm
Viewing Angle:	-	Lens Type:	-
Lens Style/Size:	Rectangle with Flat Top, 2.14mm x 0.7mm	Packaging :	Cut Tape
Package / Case:	3-SMD, No Lead	Size / Dimension:	2.50mm L x 1.10mm W
Height:	0.70mm	Mounting Type:	Surface Mount, Right Angle

Description

Series: -
Current - Test: 10mA
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Mounting Type: Surface Mount, Right Angle
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Height: 0.70mm
Packaging: Digi-Reel®
Color: Green, Red
Package / Case: 3-SMD, No Lead
Voltage - Forward (Vf) Typ: 2.03V Green, 1.72V Red
Lens Style/Size: Rectangle with Flat Top, 2.14mm x 0.7mm
Size / Dimension: 2.50mm L x 1.10mm W
Wavelength - Peak: 565nm, 655nm
Millicandela Rating: 5mcd Green, 4mcd Red

Parameters:

Technical/Catalog Information	LNJ123W8PRZ
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Green, Red
Lens Style/Size	Rectangle, 2.14mm x 0.7mm
Millicandela Rating	5mcd Green, 4mcd Red
Voltage - Forward (Vf) Typ	2.03V Green, 1.72V Red
Wavelength - Dominant	565nm, 655nm
Wavelength - Peak	565nm, 655nm
Current - Test	10mA
Viewing Angle	135°
Lens Type	Diffused, White
Luminous Flux	19 mlm Green, 16 mlm Red
Package / Case	2.5mm x 1.1mm x 0.7mm
Mounting Type	Surface Mount, Right Angle
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ123W8PRZ LNJ123W8PRZ P593CT ND P593CTND P593CT
