SeekIC No. : 003613300 Detail

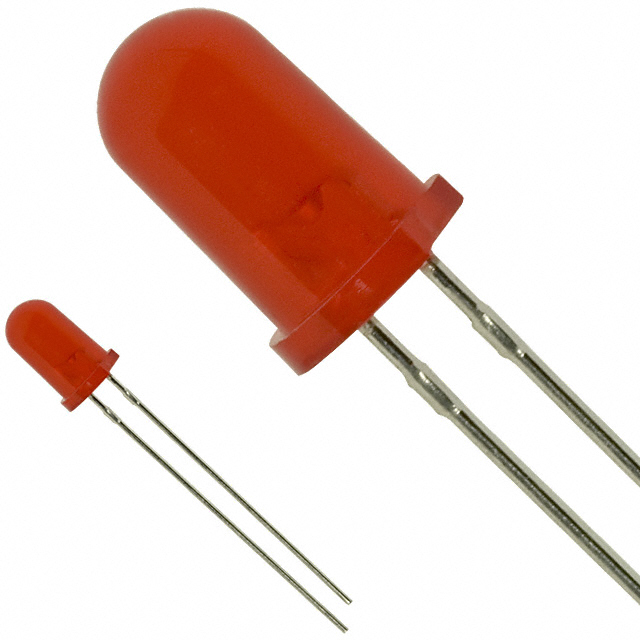

LNG801RKD: LED ORANGE/RED DIFFUSED 5MM RND

LNG801RKD Data Sheet

US $ .06~.22 / Piece | Get Latest Price

Part Number:: LNG801RKD
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500

Unit Price
$.22
$.15
$.12
$.1
$.08
$.06
$.06

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LNG801C2DT evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C) Red 60...
LNG801CF8 evaluate
Specifications Lighting Color PD(mW) IF(mA) VR(V) Topr() Tstg() Orange ...
LNG801CFD evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr() Tstg() Orange 90 ...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Orange	Millicandela Rating:	10mcd
Voltage - Forward (Vf) Typ:	2.1V	Current - Test:	20mA
Wavelength - Dominant:	-	Wavelength - Peak:	630nm
Viewing Angle:	-	Lens Type:	-
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial	Size / Dimension:	-
Height:	8.65mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Millicandela Rating: 10mcd
Voltage - Forward (Vf) Typ: 2.1V
Color: Orange
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Size / Dimension: -
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Wavelength - Peak: 630nm
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Height: 8.65mm

Parameters:

Technical/Catalog Information	LNG801RKD
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Orange
Lens Style/Size	Round, 5mm, T-1 3/4
Millicandela Rating	10mcd
Voltage - Forward (Vf) Typ	2.1V
Wavelength - Dominant	630nm
Wavelength - Peak	630nm
Current - Test	20mA
Viewing Angle	40°
Lens Type	Diffused, Red Tinted
Luminous Flux	4 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNG801RKD LNG801RKD P601 ND P601ND P601
