Product Details

Description

Features:

`Wide power supply range: (Single supply: 5V to 30V)(Dual supplies:±2.5V to ±15V)
`Very low supply current drain (700A) independent of supply voltage.
`Input common-mode voltage range includes ground
`Available in 8 pin SO/ Dip package
`Internally frequency compensated for unity gain
`Large DC voltage gain(100dB)
`Wide bandwidth(unity gain)-1MHz(temperature compensated)

Pinout

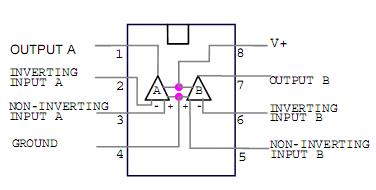

Connection Diagram

Description

The LND358 consists of two independent, high gain, internally frequency compensated operational amplifiers. They were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which now can be more easily implemented in single power supply systems.

The LND358 is available in an 8pin DIP/S0 package.
