LNA2W01L

IR LED 950NM 18 DEG DOUBLE END

product image

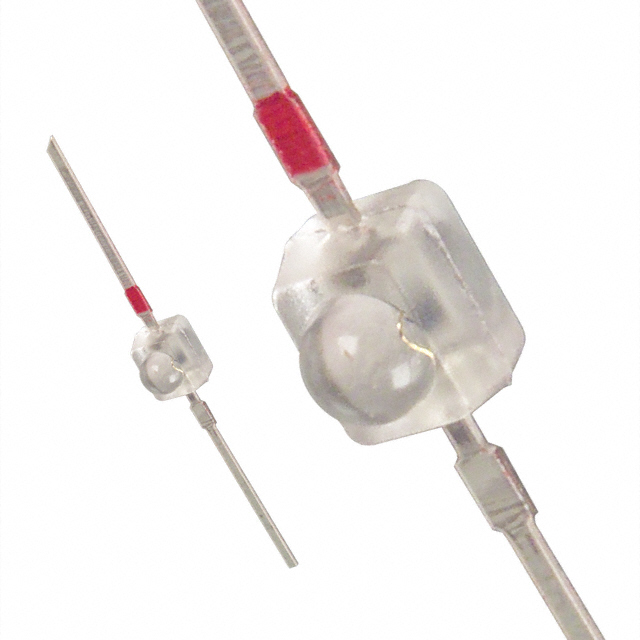

LNA2W01L Picture
See larger image
SeekIC No. : 003611953 Detail

LNA2W01L: IR LED 950NM 18 DEG DOUBLE END

LNA2W01L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LNA2W01L
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If): 50mA Radiant Intensity (Ie) Min @ If: -
Wavelength: 950nm Voltage - Forward (Vf) Typ: 1.25V
Viewing Angle: 36° Maximum Power Dissipation : 568 mW
Orientation: Top View Mounting Type: Through Hole
Package / Case: Axial

Description

Series: -
Wavelength: 950nm
Orientation: Top View
Radiant Intensity (Ie) Min @ If: -
Packaging: -
Mounting Type: Through Hole
Package / Case: Axial
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If): 50mA
Viewing Angle: 36°
Voltage - Forward (Vf) Typ: 1.25V


Features:

·High-power output, high-efficiency : PO = 4.5 mW (typ.)
·Emitted light spectrum suited for silicon photodetectors
·Infrared light emission close to monochromatic light : lP = 950 nm (typ.)
·Narrow directivity : q = 18 deg. (typ.)
·Ultra-miniature double ended package


Specifications

Parameter

Symbol

Ratings

Unit

Power dissipation

PD

75

mW

Forward current (DC)

IF

50

mA

Pulse forward current

IFP *

1

A

Reverse voltage (DC)

VR

3

V

Operating ambient temperature

Topr

25 to +85

Storage temperature

Tstg

30 to +100

* f = 100 Hz, Duty cycle = 0.1 %


Parameters:

Technical/Catalog InformationLNA2W01L
VendorPanasonic - SSG
CategoryOptoelectronics
Voltage - Forward (Vf) Typ1.25V
Current - DC Forward (If)50mA
Wavelength950nm
Viewing Angle36°
Radiant Intensity (Ie) Min @ If-
Mounting TypeSurface Mount
Package / CaseNon-Standard SMD
OrientationTop View
Packaging-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LNA2W01L
LNA2W01L
