LNA2903L

IR LED 950NM 25 DEG T1-3/4

product image

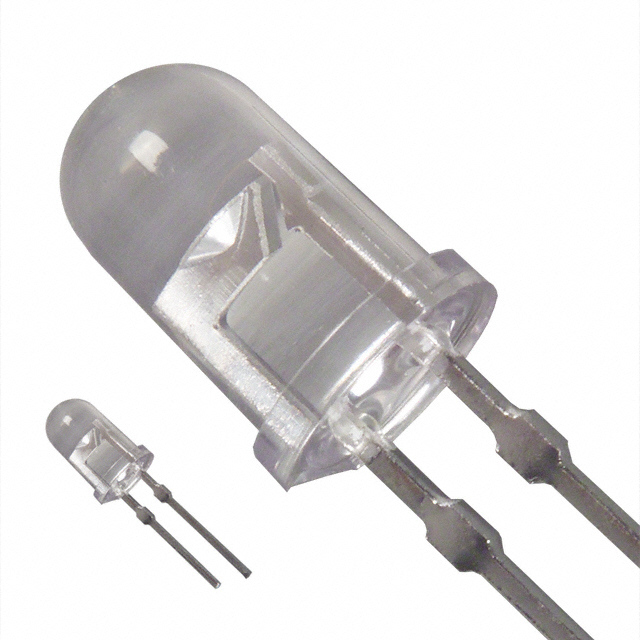

LNA2903L Picture
See larger image
SeekIC No. : 003611951 Detail

LNA2903L: IR LED 950NM 25 DEG T1-3/4

LNA2903L Data Sheet

floor Price/Ceiling Price

US $ .07~.26 / Piece | Get Latest Price
Part Number:
LNA2903L
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • 2500~5000
  • 5000~10000
  • Unit Price
  • $.26
  • $.19
  • $.16
  • $.14
  • $.12
  • $.09
  • $.08
  • $.08
  • $.07
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If): 100mA Radiant Intensity (Ie) Min @ If: 9mW/sr @ 20mA
Wavelength: 950nm Voltage - Forward (Vf) Typ: 1.5V
Viewing Angle: 40° Orientation: Top View
Maximum Power Dissipation : 568 mW Mounting Type: Through Hole
Package / Case: T 1 3/4

Description

Series: -
Current - DC Forward (If): 100mA
Wavelength: 950nm
Orientation: Top View
Voltage - Forward (Vf) Typ: 1.5V
Packaging: -
Viewing Angle: 40°
Mounting Type: Through Hole
Package / Case: T 1 3/4
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Radiant Intensity (Ie) Min @ If: 9mW/sr @ 20mA


Features:

·High-power output, high-efficiency : Ie = 9 mW/sr (min.)
·Emitted light spectrum suited for silicon photodetectors
·Good radiant power output linearity with respect to input current
·Wide directivity : q = 20 deg. (typ.)
·Transparent epoxy resin package


Specifications

Parameter Symbol Ratings Unit

Power dissipation

PD

160

mW

Forward current (DC)

IF

100

mA

Pulse forward current

IFP *

1.5

A

Reverse voltage (DC)

VR

3

V

Operating ambient temperature

Topr

25 to +85

Storage temperature

Tstg

40 to +100

* f = 100 Hz, Duty cycle = 0.1 %


Parameters:

Technical/Catalog InformationLNA2903L
VendorPanasonic - SSG
CategoryOptoelectronics
Voltage - Forward (Vf) Typ1.5V
Current - DC Forward (If)100mA
Wavelength950nm
Viewing Angle40°
Radiant Intensity (Ie) Min @ If9mW @ 20mA
Mounting TypeThrough Hole
Package / CaseT 1 3/4
OrientationTop View
Packaging-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LNA2903L
LNA2903L
