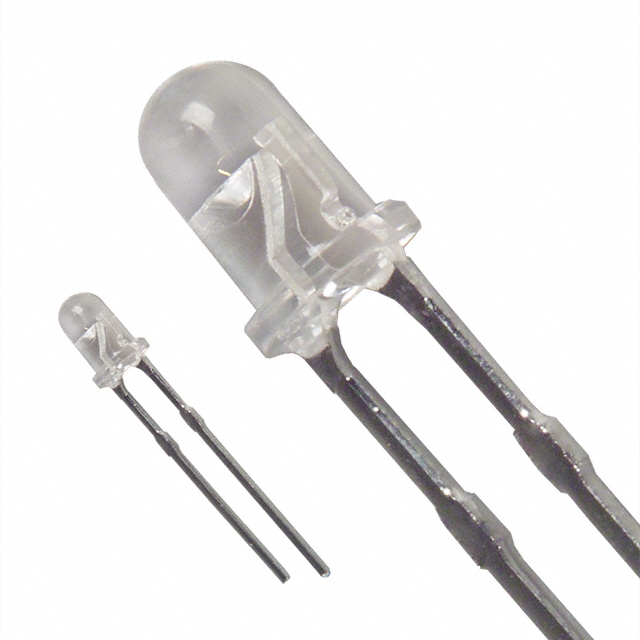

LNA2801L: IR LED 940NM 15 DEG T1

LNA2801L Data Sheet

US $ .13~.4 / Piece | Get Latest Price

Part Number:: LNA2801L
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.4
$.31
$.27
$.24
$.2
$.16
$.15
$.14
$.13

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If):	50mA	Radiant Intensity (Ie) Min @ If:	-
Wavelength:	940nm	Voltage - Forward (Vf) Typ:	1.3V
Viewing Angle:	30°	Orientation:	Top View
Maximum Power Dissipation :	568 mW	Mounting Type:	Through Hole
Package / Case:	T-1

Description

Series: -
Voltage - Forward (Vf) Typ: 1.3V
Orientation: Top View
Wavelength: 940nm
Radiant Intensity (Ie) Min @ If: -
Packaging: -
Mounting Type: Through Hole
Viewing Angle: 30°
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If): 50mA
Package / Case: T-1

Features:

·High-power output, high-efficiency : Ie = 6 mW/sr (min.)
·Emitted light spectrum suited for silicon photodetectors
·Good radiant power output linearity with respect to input current
·ø3 plastic package

Specifications

Parameter	Symbol	Ratings	Unit
Power dissipation	P_D	75	mW
Forward current (DC)	I_F	50	mA
Pulse forward current	I_FP^*	1	A
Reverse voltage (DC)	V_R	3	V
Operating ambient temperature	T_opr	25 to +85
Storage temperature	T_stg	40 to +100

* f = 100 Hz, Duty cycle = 0.1 %

Parameters:

Technical/Catalog Information	LNA2801L
Vendor	Panasonic - SSG
Category	Optoelectronics
Voltage - Forward (Vf) Typ	1.3V
Current - DC Forward (If)	50mA
Wavelength	940nm
Viewing Angle	30°
Radiant Intensity (Ie) Min @ If	-
Mounting Type	Through Hole
Package / Case	T-1
Orientation	Top View
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNA2801L LNA2801L
