LN29RCPX, US $ .05-.24, LN29RCPX DataSheet download, circuit diagram from SeekIC.com

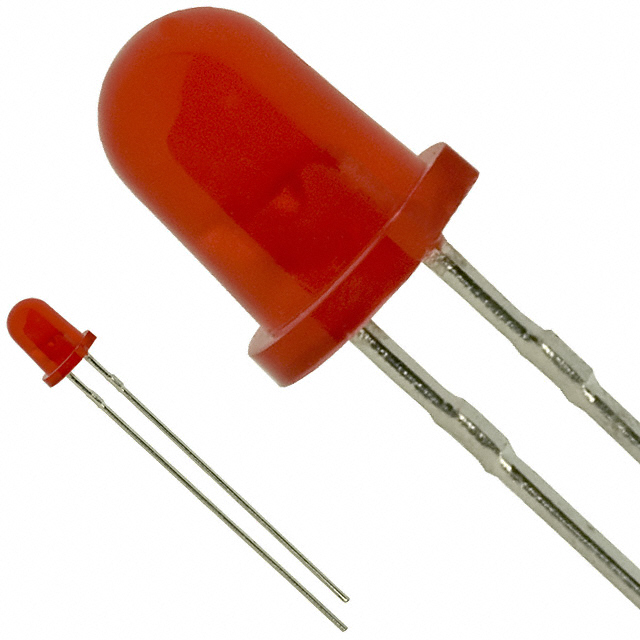

See larger image

SeekIC No. : 003614018 Detail

LN29RCPX: LED RED DIFFUSED 4MM ROUND

LN29RCPX Data Sheet

US $ .05~.24 / Piece | Get Latest Price

Part Number:: LN29RCPX
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.24
$.16
$.13
$.11
$.09
$.07
$.06
$.06
$.05

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LN29CPP evaluate
Specifications Lighting Color PD(mW) IF (mA) IFP(mA) VR(V) Topr(°C) Tstg...

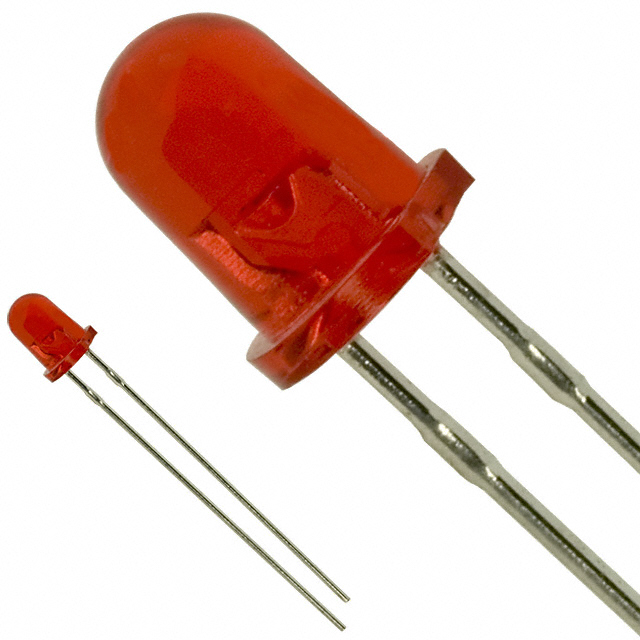

LN29RCP evaluate
LED RED CLEAR ROUND
LN29RPP evaluate
LED RED DIFFUSED ROUND

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Red	Millicandela Rating:	3.5mcd
Voltage - Forward (Vf) Typ:	2.2V	Current - Test:	20mA
Wavelength - Dominant:	-	Wavelength - Peak:	700nm
Viewing Angle:	-	Lens Type:	Diffused, Tinted
Lens Style/Size:	Round with Domed Top, 4mm	Package / Case :	Micro
Package / Case:	Radial	Size / Dimension:	-
Height:	6.00mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Voltage - Forward (Vf) Typ: 2.2V
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Size / Dimension: -
Lens Type: Diffused, Tinted
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength - Peak: 700nm
Lens Style/Size: Round with Domed Top, 4mm
Height: 6.00mm
Millicandela Rating: 3.5mcd

Parameters:

Technical/Catalog Information	LN29RCPX
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 4mm
Millicandela Rating	3.5mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	700nm
Wavelength - Peak	700nm
Current - Test	20mA
Viewing Angle	35°
Lens Type	Diffused, Red Tinted
Luminous Flux	1 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN29RCPX LN29RCPX P602 ND P602ND P602
