SeekIC No. : 003613650 Detail

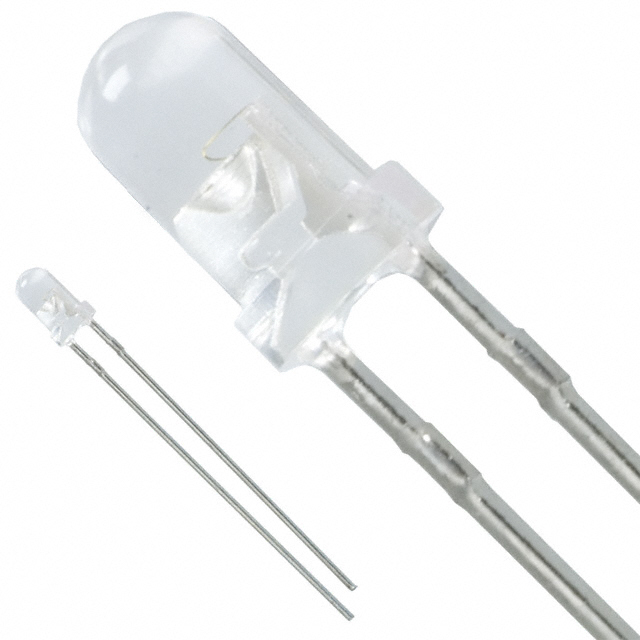

LN28CALXU: LED RED HI-BRIGHT CLEAR 3MM RND

LN28CALXU Data Sheet

US $ .07~.32 / Piece | Get Latest Price

Part Number:: LN28CALXU
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.32
$.21
$.17
$.14
$.12
$.09
$.08
$.08
$.07

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LN281RPX evaluate
Specifications LightingColor PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C)...
LN282RPX evaluate
US $.08 - .28 / Piece

LED RED DIFF 2MM RND TOP VIEW
LN287RPX evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Red	Millicandela Rating:	25mcd
Voltage - Forward (Vf) Typ:	1.8V	Current - Test:	20mA
Wavelength - Dominant:	660nm	Wavelength - Peak:	700nm
Viewing Angle:	-	Lens Type:	Clear
Lens Style/Size:	Round with Domed Top, 3mm, T-1	Package / Case :	Micro
Package / Case:	Radial	Size / Dimension:	-
Height:	5.00mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Lens Type: Clear
Color: Red
Voltage - Forward (Vf) Typ: 1.8V
Viewing Angle: -
Size / Dimension: -
Lens Style/Size: Round with Domed Top, 3mm, T-1
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 25mcd
Wavelength - Peak: 700nm
Height: 5.00mm
Wavelength - Dominant: 660nm

Parameters:

Technical/Catalog Information	LN28CALXU
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 3mm, T-1
Millicandela Rating	25mcd
Voltage - Forward (Vf) Typ	1.8V
Wavelength - Dominant	660nm
Wavelength - Peak	700nm
Current - Test	20mA
Viewing Angle	20°
Lens Type	Clear
Luminous Flux	2 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN28CALXU LN28CALXU P604 ND P604ND P604
