LN253RP

LED RED DIFF 3.7MM RND FLAT TOP

product image

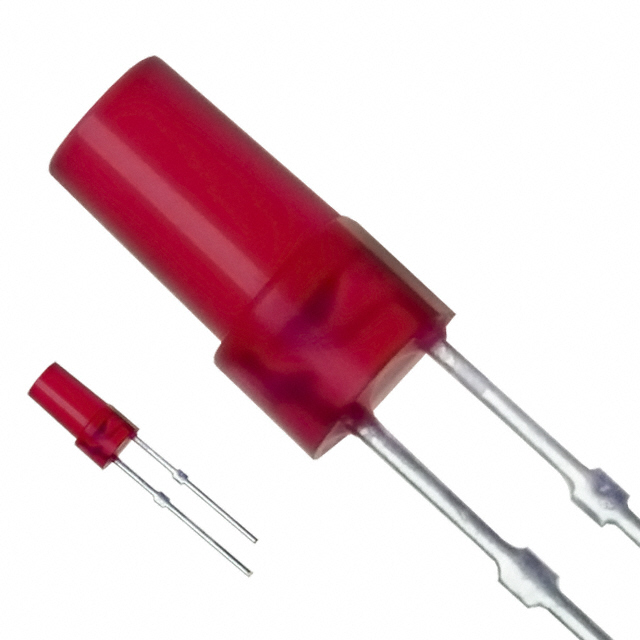

LN253RP Picture
See larger image
SeekIC No. : 003613968 Detail

LN253RP: LED RED DIFF 3.7MM RND FLAT TOP

LN253RP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LN253RP
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Color: Red Millicandela Rating: 1mcd
Voltage - Forward (Vf) Typ: 2.2V Current - Test: 15mA
Wavelength - Dominant: - Wavelength - Peak: 700nm
Viewing Angle: - Lens Type: Diffused, Tinted
Package / Case : Micro Lens Style/Size: Round with Flat Top, 3.7mm
Package / Case: Radial Size / Dimension: -
Height: 9.00mm Mounting Type: Through Hole

Description

Series: -
Voltage - Forward (Vf) Typ: 2.2V
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Size / Dimension: -
Lens Type: Diffused, Tinted
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 1mcd
Wavelength - Peak: 700nm
Current - Test: 15mA
Height: 9.00mm
Lens Style/Size: Round with Flat Top, 3.7mm


Specifications

Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C)
Red 70 25 150 4 -25 ~ +85 -30 ~ +100
Green 90 30 150 4 -25 ~ +85 -30 ~ +100
Amber 90 30 150 4 -25 ~ +85 -30 ~ +100
Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec
