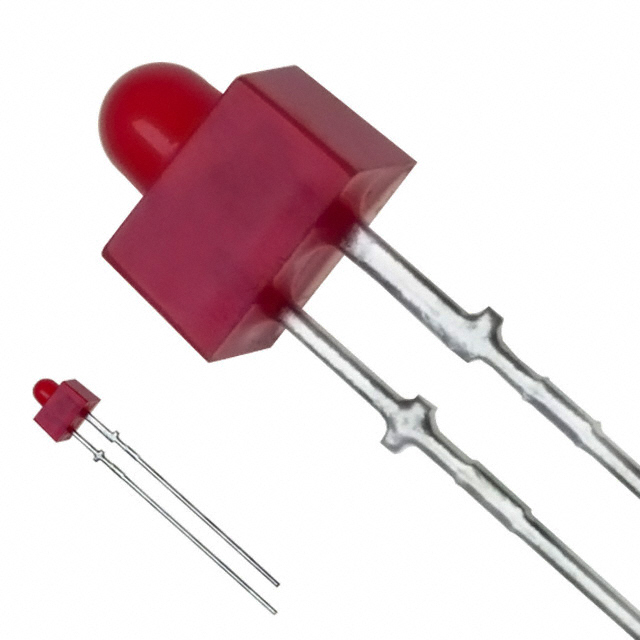

LN238RPH: LED RED DIFF 3MM RND TOP VIEW

LN238RPH Data Sheet

US $ .07~.29 / Piece | Get Latest Price

Part Number:: LN238RPH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.29
$.2
$.16
$.13
$.11
$.08
$.08
$.07
$.07

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Red	Millicandela Rating:	2mcd
Voltage - Forward (Vf) Typ:	2.2V	Current - Test:	15mA
Wavelength - Dominant:	-	Wavelength - Peak:	700nm
Viewing Angle:	-	Lens Type:	Diffused, Tinted
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 3mm
Package / Case:	Radial	Size / Dimension:	-
Height:	6.00mm	Mounting Type:	Through Hole

Description

Series: -
Voltage - Forward (Vf) Typ: 2.2V
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Size / Dimension: -
Lens Type: Diffused, Tinted
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 3mm
Millicandela Rating: 2mcd
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength - Peak: 700nm
Current - Test: 15mA
Height: 6.00mm

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr(°C)	T_stg(°C)
Red	70	25	150	4	-25 ~ +85	-30 ~ +100
Green	90	30	150	4	-25 ~ +85	-30 ~ +100
Amber	90	30	150	4	-25 ~ +85	-30 ~ +100
Orange	90	30	150	3	-25 ~ +85	-30 ~ +100

Pulse width 1 msec. The condition of I_FP is duty 10%, Pulse width 1 msec

Parameters:

Technical/Catalog Information	LN238RPH
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 3mm, T-1
Millicandela Rating	2mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	700nm
Wavelength - Peak	700nm
Current - Test	20mA
Viewing Angle	60°
Lens Type	Diffused, Red Tinted
Luminous Flux	2 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN238RPH LN238RPH P554 ND P554ND P554
