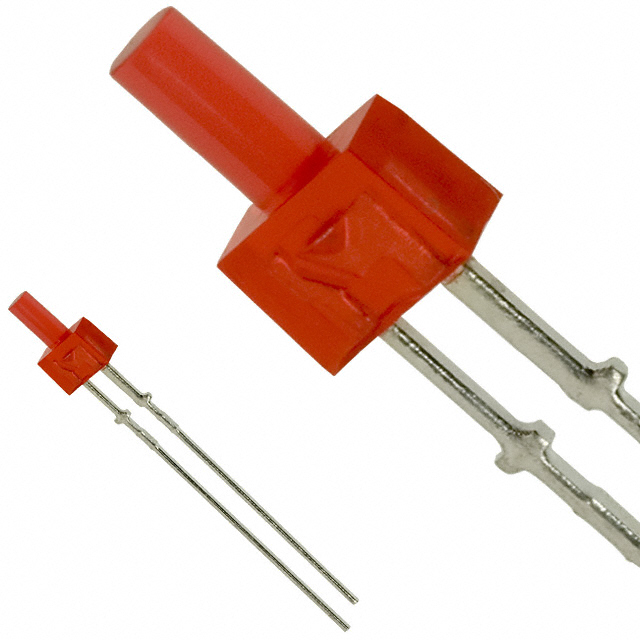

LN222RPH

Series: -
Current - Test: 20mA
Voltage - Forward (Vf) Typ: 2.2V
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Size / Dimension: -
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 1mcd
Wavelength - Peak: 700nm
Height: 8.00mm
Lens Style/Size: Round with Flat Top, 2mm


Specifications

Lighting Color	PD(mW)	IF(mA)	IFP(mA)*	VR(V)	Topr(°C)	Tstg(°C)
Red	70	25	150	4	-25 ~ +85	-30 ~ +100
Green	90	30	150	4	-25 ~ +85	-30 ~ +100
Amber	90	30	150	4	-25 ~ +85	-30 ~ +100

 I_FP duty 10%  Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec


Parameters:

Technical/Catalog Information	LN222RPH
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Red
Lens Style/Size	Round with Flat Top, 2mm
Millicandela Rating	1mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	700nm
Wavelength - Peak	700nm
Current - Test	20mA
Viewing Angle	100°
Lens Type	Diffused, Red Tinted
Luminous Flux	2 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN222RPH LN222RPH P544 ND P544ND P544
