LMV921M5X

Features: Guaranteed 1.8V, 2.7V and 5V specifications Rail-to-Rail input & output swing- w/600W load 100 mV from rail- w/2kW load 30 mV from railVCM 300mV beyond rails 90dB gain w/600W load Supply current 145µA/amplifier Gain bandwidth product 1MHz LMV921 Maximum VOS 6mVLMV921 available...

product image

LMV921M5X Picture
See larger image
SeekIC No. : 004397300 Detail

LMV921M5X: Features: Guaranteed 1.8V, 2.7V and 5V specifications Rail-to-Rail input & output swing- w/600W load 100 mV from rail- w/2kW load 30 mV from railVCM 300mV beyond rails 90dB gain w/600W load Sup...

LMV921M5X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV921M5X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  Guaranteed 1.8V, 2.7V and 5V specifications
  Rail-to-Rail input & output swing
- w/600W load 100 mV from rail
- w/2kW load 30 mV from rail
 VCM 300mV beyond rails
  90dB gain w/600W load
  Supply current 145µA/amplifier
  Gain bandwidth product 1MHz
  LMV921 Maximum VOS 6mV
 LMV921 available in Ultra Tiny, SC70-5 package
 LMV922 available in MSOP-8 package
 LMV924 available in TSSOP-14 package


Application

Cordless/cellular phones
Laptops
PDAs
PCMCIA
Portable/battery-powered electronic Equipment
Supply current Monitoring
 Battery monitoring


Pinout

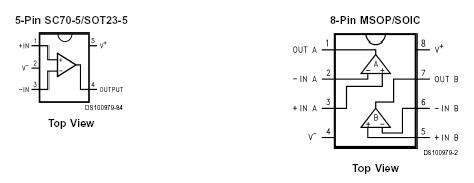

Connection Diagram


Specifications

ESD Tolerance (Note 2)
Machine Model
Human Body Model
Differential Input Voltage
Supply Voltage (V+V −)
Output Short Circuit to V+ (Note 3)
Output Short Circuit to V− (Note 3)
Storage Temperature Range
Junction Temperature (Note 4)
Mounting Temp.
Infrared or Convection (20 sec)		 100V
2000V
± Supply Voltage
5.5V



−65°C to 150°C
150°C

235°C



Description

The LMV921M5X/LMV922 Dual/LMV924 Quad are guaranteed to operate from +1.8V to +5.0V supply voltages and have rail-to-rail input and output. This rail-to-rail operation enables the user to make full use of the entire supply voltage range. The input common mode voltage range extends 300mV beyond the supplies and the output can swing rail-to-rail unloaded and within 100mV from the rail with 600W load at 1.8V supply. The LMV921/LMV922/LMV924 are optimized to work at 1.8V which make them ideal for portable two-cell battery-powered systems and single cell Li-Ion systems.

The LMV921M5X/LMV922/LMV924 exhibit excellent speed-power ratio, achieving 1MHz gain bandwidth product at 1.8V supply voltage with very low supply current. The LMV921/LMV922/LMV924 are capable of driving 600W load and up to 1000pF capacitive load with minimal ringing. The LMV921/LMV922/LMV924's high DC gain of 100dB makes them suitable for low frequency applications.

The LMV921M5X is offered in a space saving SC705 and SOT235 packages. The SC705 package is only 2.0X2.1X1.0mm. These small packages are ideal solutions for area constrained PC boards and portable electronics such as cellphones and PDAs.
