LMV552

PinoutSpecificationsSupply Min2.7 VoltSupply Max5.5 VoltGain Bandwidth3 MHzOffset Voltage max, 25C3 mVMax Input Bias Current38 nACMRR93 dBPSRR90 dBChannels2 ChannelsSupply Current Per Channel0.037 mAPowerWise Rating 212.3 uA/MHzInput OutputTypeVcm to V-, R-R OutSlew Rate1 Volts/usecOutput Current1...

product image

LMV552 Picture
See larger image
SeekIC No. : 004397258 Detail

LMV552: PinoutSpecificationsSupply Min2.7 VoltSupply Max5.5 VoltGain Bandwidth3 MHzOffset Voltage max, 25C3 mVMax Input Bias Current38 nACMRR93 dBPSRR90 dBChannels2 ChannelsSupply Current Per Channel0.037 m...

LMV552 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV552
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Supply Min2.7 Volt
Supply Max5.5 Volt
Gain Bandwidth3 MHz
Offset Voltage max, 25C3 mV
Max Input Bias Current38 nA
CMRR93 dB
PSRR90 dB
Channels2 Channels
Supply Current Per Channel0.037 mA
PowerWise Rating 212.3 uA/MHz
Input OutputTypeVcm to V-, R-R Out
Slew Rate1 Volts/usec
Output Current10 mA
Shut downNo
Voltage Noise70 nV/root(Hz)
Temperature Min-40 deg C
Temperature Max125 deg C
FunctionOp Amp
View Using Catalog



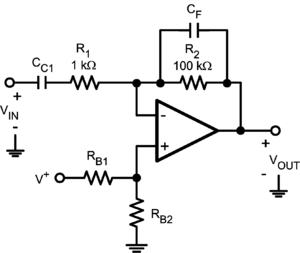

Description

The LMV551/LMV552/LMV554 are high performance, low power operational amplifiers implemented with National's advanced VIP50 process. They feature 3 MHz of bandwidth while consuming only 37 A of current per amplifier, which is an exceptional bandwidth to power ratio in this op amp class. These amplifiers are unity gain stable and provide an excellent solution for low power applications requiring a wide bandwidth.

The LMV551/LMV552/LMV554 have a rail-to-rail output stage and an input common mode range that extends below ground.

The LMV551/LMV552/LMV554 have an operating supply voltage range from 2.7V to 5.5V. These amplifiers can operate over a wide temperature range (−40°C to 125°C) making them a great choice for automotive applications, sensor applications as well as portable instrumentation applications. The LMV551 is offered in the ultra tiny 5-Pin SC70 and 5-Pin SOT-23 package. The LMV552 is offered in an 8-Pin MSOP package. The LMV554 is offered in the 14-Pin TSSOP.

Design Tools

Title Size in Kbytes Date
CLC730123EB 8-Pin MSOP Dual Op Amp Evaluation Board 103 Kbytes 22-Jun-01 View Online Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title Size in Kbytes Date
AN-1662: Application Note 1662 LMV551 Evaluation Board 666 Kbytes 12-Jul-07 Download
AN-1662 (Japanese): Application Note 1662 LMV551 Evaluation Board
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">		 355 Kbytes
AN-1662 (Chinese): Application Note 1662 LMV551 Evaluation Board
 217 Kbytes   640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

If you have trouble printing or viewing PDF file(s), see Printing Problems.
