LMV431A

Features: Low Voltage Operation/Wide Adjust Range (1.24V/30V)0.5% Initial Tolerance (LMV431B)Temperature Compensated for Industrial TemperatureRange (39 PPM/˚C for the LMV431AI)Low Operation Current (55µA)Low Output Impedance (0.25Ω)Fast Turn-On ResponseLow CostApplicationShunt Re...

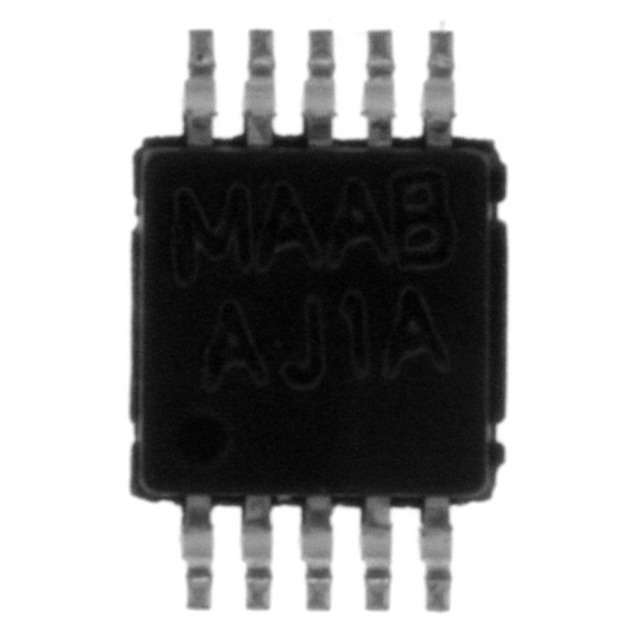

product image

LMV431A Picture
See larger image
SeekIC No. : 004397255 Detail

LMV431A: Features: Low Voltage Operation/Wide Adjust Range (1.24V/30V)0.5% Initial Tolerance (LMV431B)Temperature Compensated for Industrial TemperatureRange (39 PPM/˚C for the LMV431AI)Low Operation Cu...

LMV431A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV431A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Voltage Operation/Wide Adjust Range (1.24V/30V)
0.5% Initial Tolerance (LMV431B)
Temperature Compensated for Industrial Temperature
Range (39 PPM/˚C for the LMV431AI)
Low Operation Current (55µA)
Low Output Impedance (0.25Ω)
Fast Turn-On Response
Low Cost




Application

Shunt Regulator
Series Regulator
Current Source or Sink
Voltage Monitor
Error Amplifier
3V Off-Line Switching Regulator
Low Dropout N-Channel Series Regulator




Pinout

Connection Diagram




Specifications

Initial Accuracy (+/-) Max 1 %
Reference Voltage 1.2 V
Tempco, max (ppm/C) 138, 129 ppm
Operating Current 0.055 mA
Output Current Undefined mA
Reference with respect to Anode (low side)
Temperature Min -40 deg C
Temperature Max 85 deg C
PowerWise Undefined
View Using Catalog


Storage Temperature Range −65˚C to +150˚C
Operating Temperature Range
Industrial (LMV431AI, LMV431I) −40˚C to +85˚C
Commercial (LMV431AC, LMV431C, LMV431BC) 0˚C to +70˚C
Lead Temperature
TO92 Package/SOT23 -5,-3 Package
(Soldering, 10 sec.)265˚C
Internal Power Dissipation (Note 2)
TO92
0.78W
SOT23-5, -3 Package 0.28W
Cathode Voltage 35V
Continuous Cathode Current −30 mA to +30mA
Reference Input Current range−.05mA to 3mA




Description

The LMV431, LMV431A and LMV431B are precision 1.24V shunt regulators capable of adjustment to 30V. Negative feedback from the cathode to the adjust pin controls the cathode voltage, much like a non-inverting op amp configuration (Refer to Symbol and Functional diagrams). A two resistor voltage divider terminated at the adjust pin controls the gain of a 1.24V band-gap reference. Shorting the cathode to the adjust pin (voltage follower) provides a cathode voltage of a 1.24V.

The LMV431, LMV431A and LMV431B have respective initial tolerances of 1.5%, 1% and 0.5%, and functionally lends themselves to several applications that require zener diode type performance at low voltages. Applications include a 3V to 2.7V low drop-out regulator, an error amplifier in a 3V off-line switching regulator and even as a voltage detector. These parts are typically stable with capacitive loads greater than 10nF and less than 50pF.

The LMV431, LMV431A and LMV431B provide performance at a competitive price.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LMV431ACM5 LB300 0 32249 0 0 3406500 2 966603676
LMV431ACM5X LB300 0 32249 0 0 3406500 2 966603676
LMV431ACZ LB300 0 32249 0 0 3406500 2 966603676
LMV431AIM5 LB300 0 32249 0 0 3406500 2 966603676
LMV431AIM5X LB300 0 32249 0 0 3406500 2 966603676
LMV431AIMF LB300 0 32249 0 0 3406500 2 966603676
LMV431AIMFX LB300 0 32249 0 0 3406500 2 966603676
LMV431AIZ LB300 0 32249 0 0 3406500 2 966603676

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.
