LMV393ID

Comparator ICs Dual Low-Voltage Comparator

product image

LMV393ID Picture
SeekIC No. : 00323314 Detail

LMV393ID: Comparator ICs Dual Low-Voltage Comparator

floor Price/Ceiling Price

US $ .34~.58 / Piece | Get Latest Price
Part Number:
LMV393ID
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.58
  • $.45
  • $.39
  • $.34
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 2 Channels Product : Analog Comparators
Output Type : Open Collector, Open Drain Response Time : 0.2 us
Offset Voltage (Max) : 7 mV Supply Current (Max) : 0.1 mA
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Packaging : Tube

Description

Comparator Type :
Maximum Power Dissipation :
Number of Channels : 2 Channels
Mounting Style : SMD/SMT
Product : Analog Comparators
Output Type : Open Collector, Open Drain
Maximum Operating Temperature : + 85 C
Offset Voltage (Max) : 7 mV
Package / Case : SOIC-8
Packaging : Tube
Response Time : 0.2 us
Supply Current (Max) : 0.1 mA


Features:

·2.7-V and 5-V Performance
·Low Supply Current:
LMV331 . . . 60 µA Typ
LMV393 . . . 100 µA Typ
LMV339 . . . 170 µA Typ
·Input Common-Mode Voltage Range Includes Ground
·Low Output Saturation Voltage
. . . 200 mV Typ
·Open-Collector Output for Maximum Flexibility



Pinout

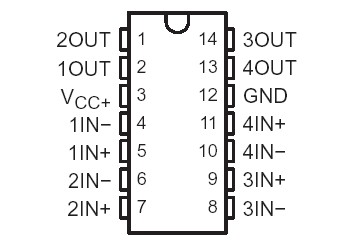

  Connection Diagram


Specifications

Supply voltage, VCC+ (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .5.5 V
Differential input voltage, VID (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5.5 V
Input voltage range, VI (either input)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .0 V to 5.5 V
Package thermal impedance, JA (see Notes 3 and 4): D (8-pin) package  . . . . . . . . . . . . . . . . . . . . . . . .97°C/W
D (14-pin) package  . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . 86°C/W
DBV package  . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . .206°C/W
DCK package  . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .252°C/W
DDU package  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . .TBD°C/W
DGK package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .  . . ... .172°C/W
PW (8-pin) package  . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .. .... .149°C/W
PW (14-pin) package  . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .  . . . . . . . . .. . . .113°C/W
Operating virtual junction temperature, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .150°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .−65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values (except differential voltages and VCC+ specified for the measurement of IOS) are with respect to the network GND.
2. Differential voltages are at IN+ with respect to IN−.
3. Maximum power dissipation is a function of TJ(max), JA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) − TA)/JA. Selecting the maximum of 150°C can affect reliability.
4. The package thermal impedance is calculated in accordance with JESD 51-7.




Description

The LMV393ID and LMV339 devices are low-voltage (2.7 V to 5.5 V) versions of the dual and quad comparators, LM393 and LM339, which operate from 5 V to 30 V. The LMV331 is the single-comparator version.

The LMV331, LMV339, and LMV393ID are the most cost-effective solutions for applications where low-voltage operation, low power, space saving, and price are the primary specifications in circuit design for portable consumer products. These devices offer specifications that meet or exceed the familiar LM339 and LM393 devices at a fraction of the supply current.




Parameters:

Technical/Catalog InformationLMV393ID
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeGeneral Purpose
Output TypeOpen Collector
Voltage - Supply2.7 V ~ 5.5 V
Number of Elements2 - Dual
Package / Case8-SOIC (3.9mm Width)
PackagingTube
Drawing Number296; 4040047-2; D; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LMV393ID
LMV393ID
