LMV321

Features: 80Asupply current per channel1.2MHz gain bandwidth productOutput voltage range: 0.01Vto 2.69VInput voltage range: -0.25Vto +1.5V1.5V/s slew rateLMV321 directly replaces other industry standard LMV321 amplifiers; available in SC70-5 and SOT23-5 packagesLMV358 directly replaces other indus...

product image

LMV321 Picture
See larger image
SeekIC No. : 004397231 Detail

LMV321: Features: 80Asupply current per channel1.2MHz gain bandwidth productOutput voltage range: 0.01Vto 2.69VInput voltage range: -0.25Vto +1.5V1.5V/s slew rateLMV321 directly replaces other industry stan...

LMV321 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMV321
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

80Asupply current per channel
1.2MHz gain bandwidth product
Output voltage range: 0.01Vto 2.69V
Input voltage range: -0.25Vto +1.5V
1.5V/s slew rate
LMV321 directly replaces other industry standard LMV321 amplifiers; available in SC70-5 and SOT23-5 packages
LMV358 directly replaces other industry standard LMV358 amplifiers; available in MSOP-8 and SOIC-8 packages
LMV324 directly replaces other industry standard LMV324 amplifiers; available in TSSOP-14 and SOIC-14 packages
Fully specified at +2.7Vand +5Vsupplies
Operating temperature range: -40 to +125




Application

Low cost general purpose applications
Cellular phones
Personal data assistants
A/D buffer
DSPinterface
Smart card readers
Portable test instruments
Keyless entry
Infrared receivers for remote controls
Telephone systems
Audio applications
Digital still cameras
Hard disk drives
MP3 players

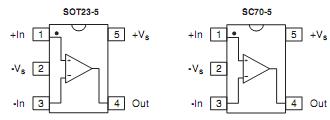

Pinout

Connection Diagram




Specifications

Supply Min 2.7 Volt
Supply Max 5.5 Volt
Gain Bandwidth 1 MHz
Slew Rate 1 Volts/usec
Offset Voltage max, 25C 7 mV
Max Input Bias Current 500 nA
Input OutputType Vcm to V-, R-R Out
Supply Current Per Channel 0.13 mA
PowerWise Rating 2 130 uA/MHz
Channels 1 Channels
Output Current 60 mA
Shut down No
Special Features Undefined
Voltage Noise 39 nV/root(Hz)
Temperature Max 85 deg C
Temperature Min -40 deg C
Function Op Amp
View Using Catalog


Parameter Min. Max. Unit
Supply Voltages 0 +6 V
Maximum Junction Temperature - +170
Storage Temperature Range -65 +150
Lead Temperature, 10 seconds - +260
Input Voltage Range -VS-0.5 +VS +0.5 V





Description

The LMV321 (single), LMV358 (dual), and LMV324 (quad) are a low cost, voltage feedback amplifiers that consume only 80A of supply current per amplifier. The LMV3XX family is designed to operate from 2.7V(±1.35V) to 5.5V( 2.75 )supplies. The common mode voltage range extends below the negative rail and the output provides rail-to-rail performance.

The LMV321 family is designed on a CMOS process and provides 1.2MHz of bandwidth and 1.5V/s of slew rate at a
low supply voltage of 2.7V. The combination of low power, rail-to-rail performance, low voltage operation, and tiny pack-age options make the LMV3XX family well suited for use in personal electronics equipment such as cellular handsets, pagers, PDAs, and other battery powered applications.
