Pinout
Specifications| Offset Voltage max, 25C | 0.15 mV |
| TcVos | 1.5 uV/degC |
| CMRR | 100 dB |
| PSRR | 96 dB |
| Avol | 120 dB |
| Voltage Noise | 6.5 nV/root(Hz) |
| Max Input Bias Current | 0.00002 nA |
| Gain Bandwidth | 17 MHz |
| Supply Current Per Channel | 1.3 mA |
| PowerWise Rating 2 | 76.5 uA/MHz |
| Slew Rate | 10.5 Volts/usec |
| Channels | 1 Channels |
| Supply Min | 1.8 Volt |
| Supply Max | 5.5 Volt |
| Input OutputType | Vcm to V-, Not R-R Out |
| Output Current | 22 mA |
| Shut down | No |
| Special Features | 3 fA Guaranteed |
| Temperature Min | -40 deg C |
| Temperature Max | 125 deg C |
| Function | Op Amp |
| AEC Q-100 Automotive Grade | 0 |
| PowerWise | Yes |
| View Using Catalog |
DescriptionThe LMP7721 is the industry's lowest guaranteed input bias current precision amplifier. The ultra low input bias current is 3 fA, with a guaranteed limit of ±20 fA at 25°C and ±900 fA at 85°C. This is achieved with the latest patent pending technology of input bias current cancellation amplifier circuitry. This technology also maintains the ultra low input bias current over the entire input common mode voltage range of the amplifier.
Other outstanding features, such as low voltage noise (6.5 nV/ ), low DC offset voltage (±150 µV maximum at 25°C) and low offset voltage temperature coefficient (−1.5 µV/°C), improve system sensitivity and accuracy in high precision applications. With a supply voltage range of 1.8V to 5.5V, the LMP7721 is the ideal choice for battery operated portable applications. The LMP7721 is part of the LMP precision amplifier family.

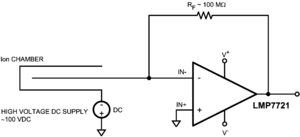

As part of National's PowerWise products, the LMP7721 provides the remarkably wide gain bandwidth product (GBW) of 17 MHz while consuming only 1.3 mA of current. This wide GBW along with the high open loop gain of 120 dB enables accurate signal conditioning. With these specifications, the LMP7721 has the performance to excel in a wide variety of applications such as electrochemical cell amplifiers and sensor interface circuits.
The LMP7721 is offered in an 8-pin SOIC package with a special pinout that isolates the amplifier's input from the power supply and output pins. With proper board layout techniques, the unique pinout of the LMP7721 will prevent PCB leakage current from reaching the input pins. Thus system error will be further reduced.
Application Notes
| Title |
Size in Kbytes |
Date |
|
| AN-1796: Application Note 1796 LMP7721 Evaluation Board |
147 Kbytes |
16-Apr-09 |
Download |
AN-1796 (Chinese): Application Note 1796 LMP7721 Evaluation Board
|
304 Kbytes |
|
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram"> |
| AN-1852: Application Note 1852 Designing With pH Electrodes |
190 Kbytes |
25-Sep-08 |
Download |
| AN-1798: Application Note 1798 Designing with Electro-Chemical Sensors |
135 Kbytes |
24-Jun-08 |
Download |
AN-1798 (Chinese): Application Note 1798 Designing with Electro-Chemical Sensors
|
218 Kbytes |
|
640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram"> |
If you have trouble printing or viewing PDF file(s), see Printing Problems.
|
LMP7721 Data Sheet
