Pinout
Specifications| Offset Voltage max, 25C | 0.15 mV |
| TcVos | 1.8 uV/degC |
| CMRR | 100 dB |
| PSRR | 98 dB |
| Avol | 110 dB |
| Voltage Noise | 5.8 nV/root(Hz) |
| Max Input Bias Current | 0.1 nA |
| Gain Bandwidth | 17 MHz |
| Supply Current Per Channel | 1.3 mA |
| PowerWise Rating 2 | 76.5 uA/MHz |
| Slew Rate | 9.5 Volts/usec |
| Channels | 2 Channels |
| Supply Min | 1.8 Volt |
| Supply Max | 5 Volt |
| Input OutputType | Vcm to V-, R-R Out |
| Output Current | 21 mA |
| Shut down | No |
| Special Features | Low Noise, Low Offset CMOS |
| Temperature Min | -40 deg C |
| Temperature Max | 125 deg C |
| Function | Op Amp |
| AEC Q-100 Automotive Grade | 1 |
| Automotive Selection Guide | Yes |
| PowerWise | Yes |
| View Using Catalog |

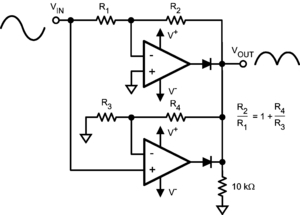

DescriptionThe LMP7715/LMP7716/LMP7716Q are single and dual low noise, low offset, CMOS input, rail-to-rail output precision amplifiers with high gain bandwidth products. The LMP7715/LMP7716/LMP7716Q are part of the LMP precision amplifier family and are ideal for a variety of instrumentation applications.
Utilizing a CMOS input stage, the LMP7715/LMP7716/LMP7716Q achieve an input bias current of 100 fA, an input referred voltage noise of 5.8 nV/ , and an input offset voltage of less than ±150 V. These features make the LMP7715/LMP7716/LMP7716Q superior choices for precision applications.
Consuming only 1.15 mA of supply current, the LMP7715 offers a high gain bandwidth product of 17 MHz, enabling accurate amplification at high closed loop gains.
The LMP7715/LMP7716/LMP7716Q have a supply voltage range of 1.8V to 5.5V, which makes these ideal choices for portable low power applications with low supply voltage requirements.
The LMP7715/LMP7716/LMP7716Q are built with National's advanced VIP50 process technology. The LMP7715 is offered in a 5-pin SOT-23 package and the LMP7716/LMP7716Q is offered in an 8-pin MSOP.
The LMP7716Q incorporates enhanced manufacturing and support processes for the automotive market, including defect detection methodologies. Reliability qualification is compliant with the requirements and temperature grades defined in the AEC-Q100 standard.
