LMH6738

Features: `750 MHz −3 dB small signal bandwidth (AV = +1)`−85 dBc 3rd harmonic distortion (20 MHz)`2.3 nV/HzHz input noise voltage`3300 V/µs slew rate`33 mA supply current (11.3 mA per op amp)`90 mA linear output current`0.02/0.01 Diff. Gain / Diff. Phase (RL = 150Ω)Applica...

product image

LMH6738 Picture
See larger image
SeekIC No. : 004396704 Detail

LMH6738: Features: `750 MHz −3 dB small signal bandwidth (AV = +1)`−85 dBc 3rd harmonic distortion (20 MHz)`2.3 nV/HzHz input noise voltage`3300 V/µs slew rate`33 mA supply current (11.3 mA...

LMH6738 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMH6738
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`750 MHz −3 dB small signal bandwidth (AV = +1)
`−85 dBc 3rd harmonic distortion (20 MHz)
`2.3 nV/HzHz input noise voltage
`3300 V/µs slew rate
`33 mA supply current (11.3 mA per op amp)
`90 mA linear output current
`0.02/0.01 Diff. Gain / Diff. Phase (RL = 150Ω)


Application

·RGB video driver
·High resolution projectors
·Flash A/D driver
·D/A transimpedance buffer
·Wide dynamic range IF amp
·Radar/communication receivers
·DDS post-amps
·Wideband inverting summer
·Line driver


Pinout

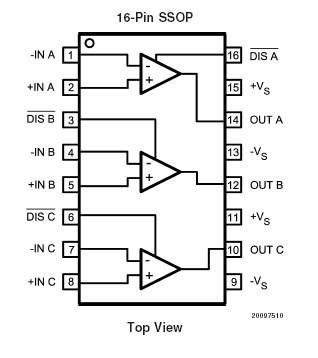

Connection Diagram


Specifications

Supply Voltage (V+ - V) .......................................................13.2V
IOUT ...................................................................................(Note 3)
Common Mode Input Voltage .................................................±VCC
Maximum Junction Temperature ............................................+150
Storage Temperature Range ...................................−65 to +150
Soldering Information
Infrared or Convection (20 sec.) ..............................................235
Wave Soldering (10 sec.) .........................................................260
ESD Tolerance (Note 4)
Human Body Model .................................................................2000V
Machine Model ..........................................................................200V
Storage Temperature Range ...................................−65 to +150


Description

The LMH6738 is a very wideband, DC coupled monolithic operational amplifier designed specifically for ultra high resolution video systems as well as wide dynamic range systems requiring exceptional signal fidelity. Benefiting from National's current feedback architecture, the LMH6738 offers a gain range of ±1 to ±10 while providing stable, operation without external compensation, even at unity gain. At a gain of +2 the LMH6738 supports ultra high resolution video systems with a 400 MHz 2 VPP 3 dB Bandwidth. With 12-bit distortion levels through 30 MHz (RL = 100Ω), 2.3 nV/Hz Hz input referred noise, the LMH6738 is the ideal driver or buffer for high speed flash A/D and D/A converters. Wide dynamic range systems such as radar and communication receivers requiring a wideband amplifier offering exceptional signal purity will find the LMH6738's low input referred noise and low harmonic distortion make it an attractive solution.
