LMH6732

Features: ·Exceptional Performance at any Supply Current: VS = ±5V, TA = 25°C, AV = +2V/V, VOUT = 2VPP, Typical unless Noted: ICC(mA) -3dBBW(MHz) DG/DP (%/deg.)PAL SlewRate(V/µs) THD1MHz(dBc) OutputCurrent(mA) 1.0 55 0.020/ 0.036 400 -70.0 9 3...

product image

LMH6732 Picture
See larger image
SeekIC No. : 004396703 Detail

LMH6732: Features: ·Exceptional Performance at any Supply Current: VS = ±5V, TA = 25°C, AV = +2V/V, VOUT = 2VPP, Typical unless Noted: ICC(mA) -3dBBW(MHz) DG/DP (%/deg.)PAL SlewRate(V/&micr...

LMH6732 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMH6732
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Exceptional Performance at any Supply Current: VS = ±5V, TA = 25°C, AV = +2V/V, VOUT = 2VPP, Typical unless Noted:
ICC
(mA)
-3dB
BW
(MHz)
DG/DP (%/
deg.)
PAL
Slew
Rate
(V/µs)
THD
1MHz
(dBc)
Output
Current
(mA)
1.0
55
0.020/ 0.036
400
-70.0
9
3.4
180
0.022 / 0.017
2100
-78.5
45
9.0
540
0.025 / 0.010
2700
-79.6
115

·Ultra High Speed (−3dB BW) 1.5GHz (ICC = 10mA, 0.25VPP)
·Single resistor adjustability of supply current
·Fast enable/ disable capability 20ns (ICC = 9mA)
·"Popless" output on "Enable" 15mV (ICC = 1mA)
·Ultra low disable current <1µA
·Unity gain stable
·Improved Replacement for CLC505 & CLC449


Application

·Battery powered systems
·Video switching and distribution
·Remote site instrumentation
·Mobile communications gear


Pinout

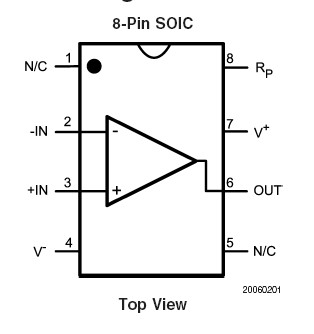

Connection Diagram


Specifications

VS .................................................................................±6.75V
IOUT ............................................................................(Note 3)
ICC ..................................................................................14mA
Common Mode Input Voltage .....................................V− to V+
Maximum Junction Temperature ....................................+150
Storage Temperature Range ..........................−65 to +150
Soldering Information
Infrared or Convection (20 sec) ......................................235
Wave Soldering (10 sec) .................................................260
ESD Tolerance (Note 4)
Human Body Model ........................................................2000V
Machine Model .................................................................200V


Description

The LMH6732 is a high speed op amp with a unique combination of high performance, low power consumption, and flexibility of application. The supply current is adjustable, over a continuous range of more than 10 to 1, with a single resistor, RP. This feature allows the device to be used in a wide variety of high performance applications including device turn on/ turn off (Enable/ Disable) for power saving or multiplexing. Typical performance at any supply current is exceptional. The LMH6732's design has been optimized so that the output is well behaved, eliminating spurious outputs on "Enable".

The LMH6732's combination of high performance, low power consumption, and large signal performance makes it ideal for a wide variety of remote site equipment applications such as battery powered test instrumentation and communications gear. Other applications include video switching matrices, ATE and phased array radar systems.

The LMH6732 is available in the SOIC and SOT23-6 packages. To reduce design times and assist in board layout, the LMH6732 is supported by an evaluation board.
