LMH6560

Features: ·Closed-loop quad buffer·680MHz small signal bandwidth·3100V/µs slew rate·0.10% / 0.03° differential gain / phase·−51dBc THD at 20MHz·Single supply operation (3V min.)·80mA output currentApplication·Multi-channel video distribution·Video switching and routing·High-speed analo...

product image

LMH6560 Picture
See larger image
SeekIC No. : 004396662 Detail

LMH6560: Features: ·Closed-loop quad buffer·680MHz small signal bandwidth·3100V/µs slew rate·0.10% / 0.03° differential gain / phase·−51dBc THD at 20MHz·Single supply operation (3V min.)·80mA out...

LMH6560 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMH6560
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Closed-loop quad buffer
·680MHz small signal bandwidth
·3100V/µs slew rate
·0.10% / 0.03° differential gain / phase
·−51dBc THD at 20MHz
·Single supply operation (3V min.)
·80mA output current


Application

·Multi-channel video distribution
·Video switching and routing
·High-speed analog multiplexing
·Channelized EW
·High-density buffering
·Active filters
·Broadcast and high definition TV systems
·Medical imaging
·Test equipment and instrumentation




Pinout

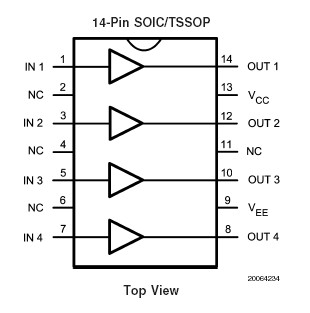

Connection Diagram


Specifications

ESD Tolerance
Human Body Model .........................................................2000V (Note 2)
Machine Model ..................................................................200V (Note 3)
Output Short Circuit Duration ......................................(Note 4),(Note 5)
Supply Voltage (V+ V−) .................................................................13V
Voltage at Input/Output Pins ..................................V+ +0.8V, V− −0.8V
Soldering Information
Infrared or Convection (20 sec.) ....................................................235
Wave Soldering (10 sec.) ...............................................................260
Storage Temperature Range .........................................−65 to +150
Junction Temperature (Note 6) .....................................................+150


Description

The LMH6560 is a high speed, closed-loop buffer designed for applications requiring the processing of very high frequency signals. While offering a small signal bandwidth of 680MHz, and a very high slew rate of 3100V/µs the LMH6560 consumes only 46mA of quiescent current for all four buffers. Total harmonic distortion into a load of 100Ω at 20MHz is −51dBc.

The LMH6560 is configured internally for a loop gain of one. Input resistance is 100kΩ and output resistance is but 1.5Ω. Crosstalk between the buffers is only −55dB. These characteristics make the LMH6560 an ideal choice for the distribution of high frequency signals on printed circuit boards. Differential gain and phase specifications of 0.10% and 0.03° respectively at 3.58MHz make the LMH6560 well suited for the buffering of video signals.

The device is fabricated on National's high speed VIP10 process using National's proven high performance circuit architectures.
