Features:

(Typical unless otherwise noted)
Rail-to-Rail Input Common-Mode Voltage Range (Guaranteed Over Temperature)
Rail-to-Rail Output Swing (within 20 mV of supply rail, 100 kW load)
Guaranteed 3V, 5V and 15V Performance
Excellent CMRR and PSRR: 82 dB
Ultra Low Input Current: 20 fA
High Voltage Gain (RL = 500 k): 130 dB
Specified for 2 kW and 600 loads
Available in MSOP Package




Application

Data Acquisition Systems
Transducer Amplifiers
Hand-held Analytic Instruments
Medical Instrumentation
Active Filter, Peak Detector, Sample and Hold, pH Meter, Current Source
Improved Replacement for TLC272, TLC277




Pinout

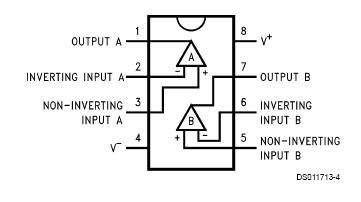

Connection Diagram




Specifications

ESD Tolerance (Note 2) ....................................................1.5 kV
Differential Input Voltage ..................................±Supply Voltage
Voltage at Input/Output Pin..................... (V+) +0.3V, (V−) −0.3V
Supply Voltage (V+ − V−) .......................................................16V
Current at Input Pin (Note 12) ............................................±5 mA
Current at Output Pin(Notes 3, 8) .....................................±30 mA
Current at Power Supply Pin .................................................40 mA
Lead Temperature(Soldering, 10 sec.) .................................260°C
Storage Temperature Range............................. −65°C to +150°C
Junction Temperature (Note 4) ..................................................150




Description

The LMC6482 provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers.

It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6482 is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC272 and TLC277.

Maximum dynamic signal range is assured in low voltage and single supply systems by the LMC6482's rail-to-rail output swing. The LMC6482's rail-to-rail output swing is guaranteed for loads down to 600.

Guaranteed low voltage characteristics and low power dissipation make the LMC6482 especially well-suited for battery-operated systems.

LMC6482 is also available in MSOP package which is almost half the size of a SO-8 device.

See the LMC6484 data sheet for a Quad CMOS operational amplifier with these same features.
