Features:

·Specified for 2 kW and 600W loads
·High voltage gain: 126 dB
·Low offset voltage drift: 2.3 µV/°C
·Ultra low input bias current: 40 fA
·Input common-mode range includes V−
·Operating Range from +5V to +15V supply
·ISS = 400 µA/amplifier; independent of V+
·Low distortion: 0.01% at 10 kHz
·Slew rate: 1.1 V/µs
·Improved performance over TLC274




Application

·High-impedance buffer or preamplifier
·Current-to-voltage converter
·Long-term integrator
·Sample-and-hold circuit
·Medical instrumentation

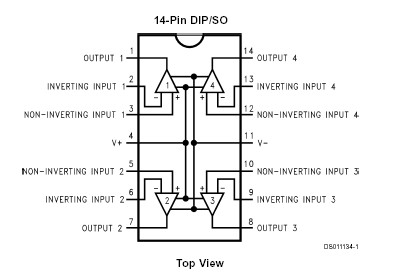

Pinout






Specifications

Differential Input Voltage ......................................................±Supply Voltage
Supply Voltage (V+ − V−) ..........................................................................16V
Output Short Circuit to V+ ................................................................(Note 10)
Output Short Circuit to V− ..................................................................(Note 2)
Lead Temperature
(Soldering, 10 sec.) ................................................................................260
Storage Temperature Range .................................................−65 to +150
Power Dissipation (Note 3)
Voltage at Output/Input Pin ........................................(V+) +0.3V, (V−) −0.3V
Current at Output Pin .........................................................................±18 mA
Current at Input Pin .............................................................................±5 mA
Current at Power Supply Pin .................................................................35 mA
Junction Temperature (Note 3) ...............................................................150
ESD Tolerance (Note 4) .........................................................................1000V




Description

The LMC6034 is a CMOS quad operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 k and 600.

This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process.

See the LMC6032 datasheet for a CMOS dual operational amplifier with these same features. For higher performance characteristics refer to the LMC660.
