LMC6032

Features: `Specified for 2 k and 600W loads`High voltage gain: 126 dB`Low offset voltage drift: 2.3 µV/`Ultra low input bias current: 40 fA`Input common-mode range includes V−`Operating range from +5V to +15V supply`ISS = 400 µA/amplifier; independent of V+`Low distortion: 0.01% ...

product image

LMC6032 Picture
See larger image
SeekIC No. : 004396519 Detail

LMC6032: Features: `Specified for 2 k and 600W loads`High voltage gain: 126 dB`Low offset voltage drift: 2.3 µV/`Ultra low input bias current: 40 fA`Input common-mode range includes V−`Operating ...

LMC6032 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMC6032
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Specified for 2 k and 600W loads
`High voltage gain: 126 dB
`Low offset voltage drift: 2.3 µV/
`Ultra low input bias current: 40 fA
`Input common-mode range includes V−
`Operating range from +5V to +15V supply
`ISS = 400 µA/amplifier; independent of V+
`Low distortion: 0.01% at 10 kHz
`Slew rate: 1.1 V/µs
`Improved performance over TLC272




Application

·High-impedance buffer or preamplifier
·Current-to-voltage converter
·Long-term integrator
·Sample-and-hold circuit
·Medical instrumentation

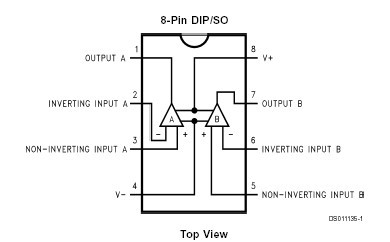

Pinout

Connection Diagram




Specifications

Differential Input Voltage ................................................±Supply Voltage
Supply Voltage (V+ − V−) ....................................................................16V
Output Short Circuit to V+ ..........................................................(Note 10)
Output Short Circuit to V− ............................................................(Note 2)
Lead Temperature
(Soldering, 10 sec.) ..........................................................................260
Storage Temperature Range ...........................................−65 to +150
Junction Temperature .......................................................................150
ESD Tolerance (Note 4) ...................................................................1000V
Power Dissipation (Note 3)
Voltage at Output/Input Pin ...................................................(V+) + 0.3V,
.................................................................................................(V−) − 0.3V
Current at Output Pin ...................................................................±18 mA
Current at Input Pin ........................................................................±5 mA
Current at Power Supply Pin ............................................................35 mA




Description

The LMC6032 is a CMOS dual operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 kW and 600W. This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process. See the LMC6034 datasheet for a CMOS quad operational amplifier with these same features. For higher performance characteristics refer to the LMC662.
