Product Details

Description



Features:

`Specified for 100 k and 5 kW loads
`High voltage gain 120 dB
`Low offset voltage drift 2.5 µV/°C
`Ultra low input bias current 40 fA
`Input common-mode range includes V−
`Operating range from +5V to +15V supply
`Low distortion 0.01% at 1 kHz
`Slew rate 0.11 V/µs
`Micropower operation 1 mW




Application

·High-impedance buffer or preamplifier
·Current-to-voltage converter
·Long-term integrator
·Sample-and-hold circuit
·Peak detector
·Medical instrumentation
·Industrial controls

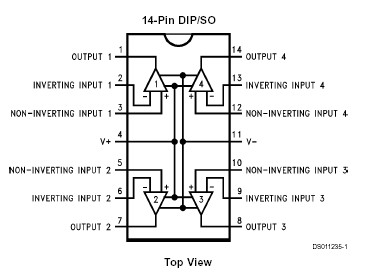

Pinout






Specifications

Differential Input Voltage .............................................................±Supply Voltage
Supply Voltage (V+ − V−) .................................................................................16V
Lead Temperature
(Soldering, 10 sec.) .......................................................................................260
Storage Temperature Range ........................................................−65 to +150
Voltage at Output/Input Pin (V+) + 0.3V, (V−) ............................................− 0.3V
Current at Input Pin ...................................................................................±5 mA
Current at Output Pin ...............................................................................±18 mA
Current at Power Supply Pin .......................................................................35 mA
Output Short Circuit to V+ ......................................................................(Note 12)
Output Short Circuit to V− ........................................................................(Note 2)
Junction Temperature ...................................................................................150
ESD Tolerance (Note 4) ...............................................................................1000V
Power Dissipation ....................................................................................(Note 3)




Description

The LMC6024 is a CMOS quad operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches V-, low input bias current and voltage gain (into 100 k and 5 k loads) that is equal to or better than widely accepted bipolar equivalents, while the power supply requirement is less than 1 mW.

This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process.

See the LMC6022 datasheet for a CMOS dual operational amplifier with these same features.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LMC6024IM P2CMOS 0 48295 0 1 4172500 2 536440139
LMC6024IMX P2CMOS 0 48295 0 1 4172500 2 536440139

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Design Tools

Title Size in Kbytes Date
Amplifiers Selection Guide software for Windows 8 Kbytes 6-Mar-2007 View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Application Notes

Title Size in Kbytes Date
AN-1237: Application Note 1237 RSDS™ Flat Panel Display Design Guidelines Part 2 141 Kbytes 14-May-03 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
