LMC6022

Features: `Specified for 100 kW and 5 k loads`High voltage gain: 120 dB`Low offset voltage drift: 2.5 µV/°C`Ultra low input bias current: 40 fA`Input common-mode range includes V−`Operating range from +5V to +15V supply`Low distortion: 0.01% at 1 kHz` Slew rate: 0.11 V/µs`Micropo...

product image

LMC6022 Picture
See larger image
SeekIC No. : 004396517 Detail

LMC6022: Features: `Specified for 100 kW and 5 k loads`High voltage gain: 120 dB`Low offset voltage drift: 2.5 µV/°C`Ultra low input bias current: 40 fA`Input common-mode range includes V−`Operat...

LMC6022 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMC6022
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Specified for 100 kW and 5 k loads
`High voltage gain: 120 dB
`Low offset voltage drift: 2.5 µV/°C
`Ultra low input bias current: 40 fA
`Input common-mode range includes V−
`Operating range from +5V to +15V supply
`Low distortion: 0.01% at 1 kHz
` Slew rate: 0.11 V/µs
`Micropower operation: 0.5 mW






Application

·High-impedance buffer or preamplifier
·Current-to-voltage converter
·Long-term integrator
·Sample-and-hold circuit
·Peak detector
·Medical instrumentation
·Industrial controls

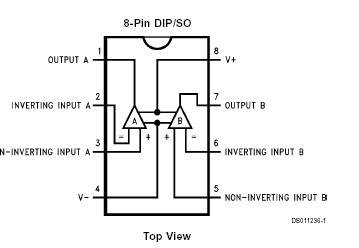

Pinout






Specifications

Differential Input Voltage ........................................................±Supply Voltage
Supply Voltage (V+ − V−) ............................................................................16V
Lead Temperature
(Soldering, 10 sec.) ..................................................................................260
Storage Temperature Range ...................................................−65 to +150
Junction Temperature ..............................................................................150
ESD Tolerance (Note 4) ..........................................................................1000V
Voltage at Output/Input Pin .........................................(V+) +0.3V, (V−) −0.3V
Current at Output Pin ..........................................................................±18 mA
Current at Power Supply Pin ..................................................................35 mA
Power Dissipation (Note 3)
Current at Input Pin ..............................................................................±5 mA
Output Short Circuit to V− ...................................................................(Note 2)
Output Short Circuit to V+ .................................................................(Note 12)




Description

The LMC6022 is a CMOS dual operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches V−, low input bias current, and voltage gain (into 100k and 5 k loads) that is equal to or better than widely accepted bipolar equivalents, while the power supply requirement is less than 0.5 mW.

This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process. See the LMC6024 datasheet for a CMOS quad operational amplifier with these same features.
