Temp Resolution9-bit/0.5degC
Remote Diode Thermal Sensors4
TruTherm(TM) Beta CompensationYes
Analog Inputs8 to 6, V+
ADC Resolution8 bits
Fan Speed Inputs4
Fan Control Output(s)2 PWM, 22.5kHz
Fan Control MethodPI and Lookup Table
VID Inputs7
Dynamic VID VCCP Monitoring1
Bidirectional PROCHOT Support1
GPIOs8 GPIO, 1 GPI, RESET
Interrupt Outputs1
Reference VoltageUndefined
Temperature Accuracy (+/-)2.5 deg C
Temperature Min-40 deg C
Temperature Max100 deg C
Interface TypeSMBus
Supply Min3 Volt
Supply Max3.6 Volt
Quiescent Current1.6 mA
Resolution9 bits
Temperature Accuracy (+/-)2.5 deg C
Automotive Selection GuideYes
PowerWiseYes
View Using Catalog



Description

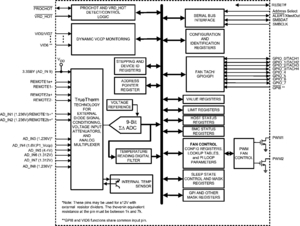

The LM96194 hardware monitor has a two wire digital interface compatible with SMBus 2.0. Using a ADC, the LM96194 measures the temperature of four remote diode connected transistors as well as its own die and 9 power supply voltages. The LM96194 has new TruTherm technology that supports precision thermal diode measurements of processors on sub-micron processes.

To set fan speed, the LM96194 has two PWM outputs that are each controlled by up to six temperature zones. The fan-control algorithm can be based on a lookup table, PI (proportional/integral) control loop, or a combination of both. The LM96194 includes digital filters that can be invoked to smooth temperature readings for better control of fan speed such that acoustical noise is minimized. The LM96194 has four tachometer inputs to measure fan speed. Limit and status registers for all measured values are included.

The LM96194 includes most of the features of the LM94, dual CPU motherboard server management ASIC, such as measurement and control support for dynamic Vccp monitoring for VRD10/11 and ^PROCHOT but is targeted for single processor systems.
