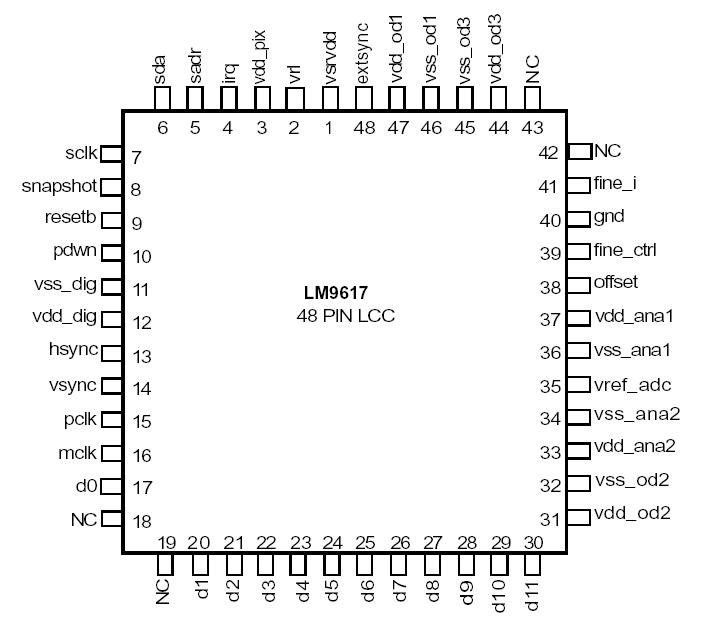

LM9617

• Supplied with micro lenses
• Video or snapshot operations
• Progressive scan and interlace read out modes.
• Programmable pixel clock, inter-frame and inter-line delays.
• Programmable partial or full frame integration
• Programmable gain
• Horizontal & vertical sub-sampling (2:1 & 4:2)
• Windowing
• External snapshot trigger & event synchronisation signals
• Auto black level compensation
• Flexible digital video read-out supporting programmable:
   - polarity for synchronisation and pixel clock signals
   - leading edge adjustment for horizontal synchronization
• Programmable via 2 wire I²C compatible serial interface
• Power on reset & power down mode

The LM9617 is a high performance, low power, third inch VGA CMOS Active Pixel Sensor capable of capturing grey-scale digital still or motion images and converting them to a digital data stream. In addition to the active pixel array, an on-chip 12 bit A/D convertor, fixed pattern noise elimination circuits and a video gain is provided. Furthermore, an integrated programmable smart timing and control circuit allows the user maximum flexibility in adjusting integration time, active window size, gain and frame rate. Various control, timing and power modes are also provided.
