LM9011

Features: ·Single 5V supply operation·VR Sensor Interface with dynamic hysteresis·Four Channel Electronic Timing spark driver with output diagnostics·Electronic Timing Interface spark driver output voltage from 5V to 16V·One Non-Inverting voltage comparator with hysteresis·Three Inverting voltage ...

product image

LM9011 Picture
See larger image
SeekIC No. : 004396253 Detail

LM9011: Features: ·Single 5V supply operation·VR Sensor Interface with dynamic hysteresis·Four Channel Electronic Timing spark driver with output diagnostics·Electronic Timing Interface spark driver output ...

LM9011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM9011
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Single 5V supply operation
·VR Sensor Interface with dynamic hysteresis
·Four Channel Electronic Timing spark driver with output diagnostics
·Electronic Timing Interface spark driver output voltage from 5V to 16V
·One Non-Inverting voltage comparator with hysteresis
·Three Inverting voltage comparators with hysteresis




Pinout

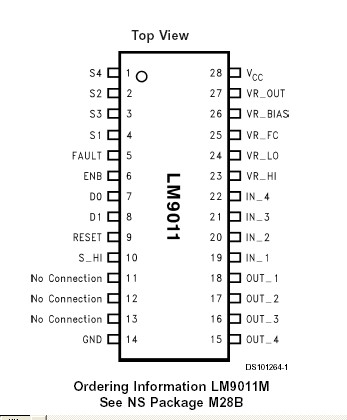

Connection Diagram


Specifications

Voltage ...............................................................-0.3V to +7.0V
S_HI Voltage .......................................................-0.3V to 26.5V
VR_HI and VR_LO Inputs ...............................................+/-3mA
Comparator Inputs .............................................-0.3V to +7.0V
Timing Interface Inputs .......................................-0.3V to +7.0V
ESD Susceptibility (Note 3) ..........................................+/-2000V
Maximum Junction Temperature ........................................150
Storage Temperature Range .............................-65 to +150
Lead Soldering Information:
Vapor Phase (60 Seconds) ................................................215
Infrared (15 Seconds) .......................................................220


Description

The LM9011 is an interface circuit which integrates the timing detection and logic control functions required for an automotive electronic ignition system into one device. A VRS interface is provided for crankshaft position information via a toothed-wheel. Four voltage comparators are provided for hardware diagnostics. An electronic timing interface with output fault diagnostics is provided to enable a micro-processor to drive an external four channel ignition spark circuit.

The LM9011 is fully specified over the automotive temperature range of -40°C to +125°C, and is available in a 28 pin Small Outline surface mount package.
