Product Details

Description



Features:

*Single chip P-channel ED MOS LSI
*LED direct drive using time division (duplex configuration)
*Wide operating power supply voltage range
*Built-in alarm function with 24-hour control
*Supports changeover between 12-hour AM/PM and 24-hour displays
*Built-in battery backup CR oscillator
*Users 50Hz or 60Hz as standard frequency
*Built-in automatic fast forward function for hour and minute settings
*Built-in sleep timer function (maximum intervals of 59 minutes or 1 hours and 59 minutes)
*Built-in snooze function supporting repeat use
*Equipped with power failure display function
*900Hz output for alarm tone


Application

*Alarm clocks
*Clock radios

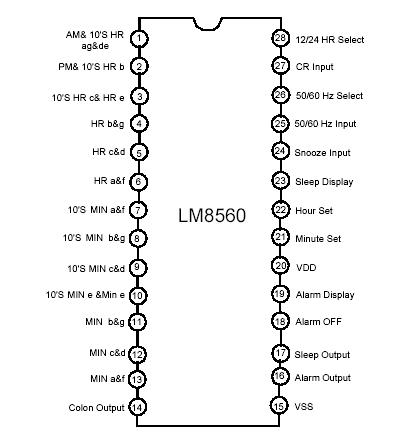

Pinout

Connection Diagram


Specifications

Symbol
PARAMETER
TEST CONDITIONS
 RATING
Unit
VDD (max)
Maximum Supply Voltage
-15~ +0.3
V
VIN1
Input Voltage1
50/60Hz Input
 -15~ +0.3
V
VIN2
Input Voltage2
Except 50/60Hz Input
-15~ +0.3
V
VOUT
Output Voltage
-15~ +0.3
V
lIN
Input Clamp Current
50/60Hz Input
-0.4 ~+0.4
mA
PD (max)
Allowable Power Dissipation
Ta=70°C
700
mW
Topr
Operating Temperature
-30 ~ +70
°C
Tstg
Storage Temperature

-55 ~ +125
°C



Description

The LM8560_1233257 is alarm equipped digital clock IC with built-in driver capable of directly driving LED display equipment. As IC himself the VDD pin for the LM8560 is graded to withstand a voltage of 15V.
