Operational Amplifiers - Op Amps

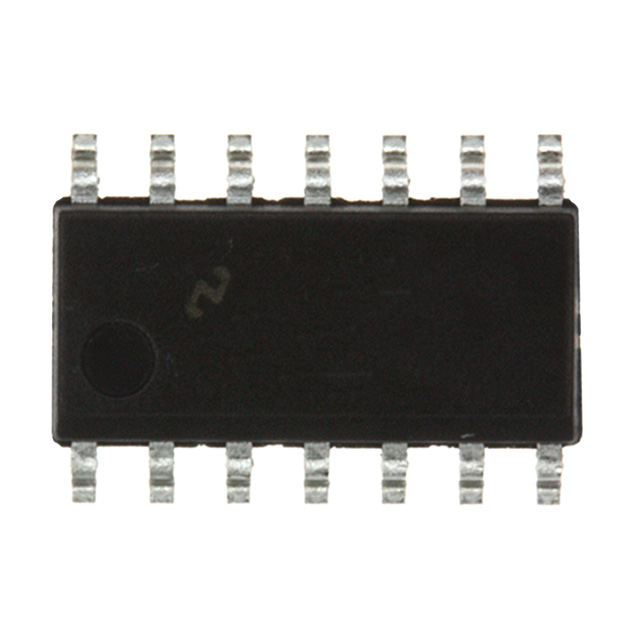

LM611CMX/NOPB: Operational Amplifiers - Op Amps
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Number of Channels : | 1 | Common Mode Rejection Ratio (Min) : | 75 dB | ||
Input Offset Voltage : | 5 mV at 32 V | Operating Supply Voltage : | 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V | ||
Mounting Style : | SMD/SMT | Package / Case : | SOIC-14 Narrow | ||
Slew Rate : | 0.70 V/us at 5 V | Shutdown : | No | ||
Maximum Operating Temperature : | + 70 C | Packaging : | Reel |
Technical/Catalog Information | LM611CMX/NOPB |
Vendor | National Semiconductor |
Category | Integrated Circuits (ICs) |
Packaging | Tape & Reel (TR) |
Amplifier Type | General Purpose |
Number of Circuits | 1 - Single |
Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
Slew Rate | 0.7 V/s |
Gain Bandwidth Product | 800kHz |
Current - Supply | 210A |
Current - Output / Channel | 25mA |
Voltage - Supply, Single/Dual (±) | 4 V ~ 32 V, ±2 V ~ 16 V |
Output Type | - |
-3db Bandwidth | - |
Current - Input Bias | 25nA |
Operating Temperature | 0°C ~ 70°C |
Voltage - Input Offset | 1500V |
Drawing Number | 14; M14A; ; 14 |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | LM611CMX NOPB LM611CMXNOPB LM611CMX ND LM611CMXND LM611CMX |
