LM4940

Features: Pop & click circuitry eliminates noise during turn-on and turn-off transitionsLow current, active-low shutdown modeLow quiescent currentStereo 6W output, RL = 4Short circuit protectionUnity-gain stableExternal gain configuration capabilityApplicationFlat Panel MonitorsFlat Panel TV'...

product image

LM4940 Picture
See larger image
SeekIC No. : 004395911 Detail

LM4940: Features: Pop & click circuitry eliminates noise during turn-on and turn-off transitionsLow current, active-low shutdown modeLow quiescent currentStereo 6W output, RL = 4Short circuit protectio...

LM4940 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM4940
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Pop & click circuitry eliminates noise during turn-on and turn-off transitions
Low current, active-low shutdown mode
Low quiescent current
Stereo 6W output, RL = 4
Short circuit protection
Unity-gain stable
External gain configuration capability




Application

Flat Panel Monitors
Flat Panel TV's
Computer Sound Cards




Pinout

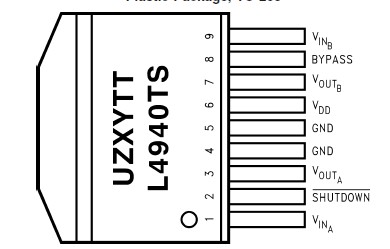

Connection Diagram




Specifications

Power@ 4Ohms, 1% THD 3.1 Watt
Power@ 4Ohms, 10% THD 6 Watt
PSRR 56 dB
Channels 2 Channels
Supply Range +10 - +16
PSRR Conditions Vripple 200mV, 12V, 4ohm
User Supply 10 Volt
Shut down Yes
Shutdown Type Low
Mono/Stereo Stereo
Temperature Min -40 deg C
Temperature Max 85 deg C
View Using Catalog


Supply Voltage (pin 6, referenced to GND, pins 4 and 5) ...............18.0V
Storage Temperature ..................................................−65°C to +150°C
Input Voltage
pins 3 and 7 .........................................................−0.3V to VDD + 0.3V
pins 1, 2, 8, and 9 ...........................................................−0.3V to 9.5V
Power Dissipation (Note 3)........................................ Internally limited
ESD Susceptibility (Note 4)............................................................ 2000V
ESD Susceptibility (Note 5) ..............................................................200V
Junction Temperature.................................................................... 150°C
Thermal Resistance
JC (TS) .......................................................................................4°C/W
JA (TS) (Note 3) .......................................................................20°C/W
JC (TA) .......................................................................................4°C/W
JA (TA) (Note 3)........................................................................ 20°C/W




Description

The LM4940 is a dual audio power amplifier primarily designed for demanding applications in flat panel monitors and TV's. It is capable of delivering 6 watts per channel to a 4 load with less than 10% THD+N while operating on a 14.4VDC power supply.

Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. The LM4940 does not require bootstrap capacitors or snubber circuits. Therefore, it is ideally suited for display applications requiring high power and minimal size.

The LM4940 features a low-power consumption active-low shutdown mode. Additionally, the LM4940 features an internal thermal shutdown protection mechanism along with short circuit protection.

The LM4940 contains advanced pop & click circuitry that eliminates noises which would otherwise occur during turn-on and turn-off transitions.

The LM4940 is a unity-gain stable and can be configured by external gain-setting resistors.
